Skin Diagram: Unlabeled & Labeled Layers

What is a skin diagram?

A skin diagram is a cross section through the skin, usually drawn as a cut-away block so the layers and the structures inside them show at once. The standard version shows thin, hairy skin with its three layers: the epidermis on top, the dermis below, and the fatty hypodermis at the bottom. Hair follicles, glands, blood vessels, nerves, and sensory receptors are set into them.

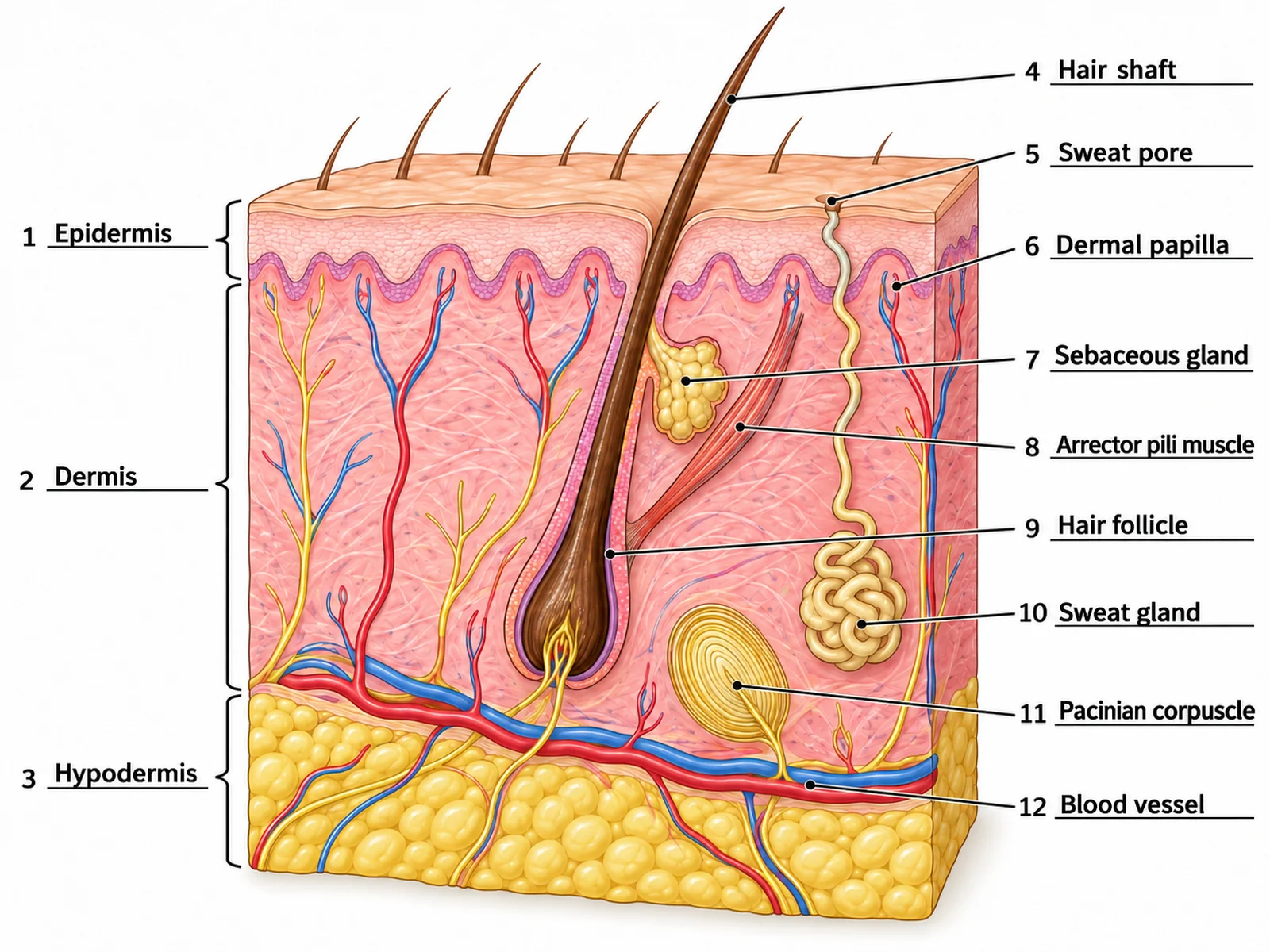

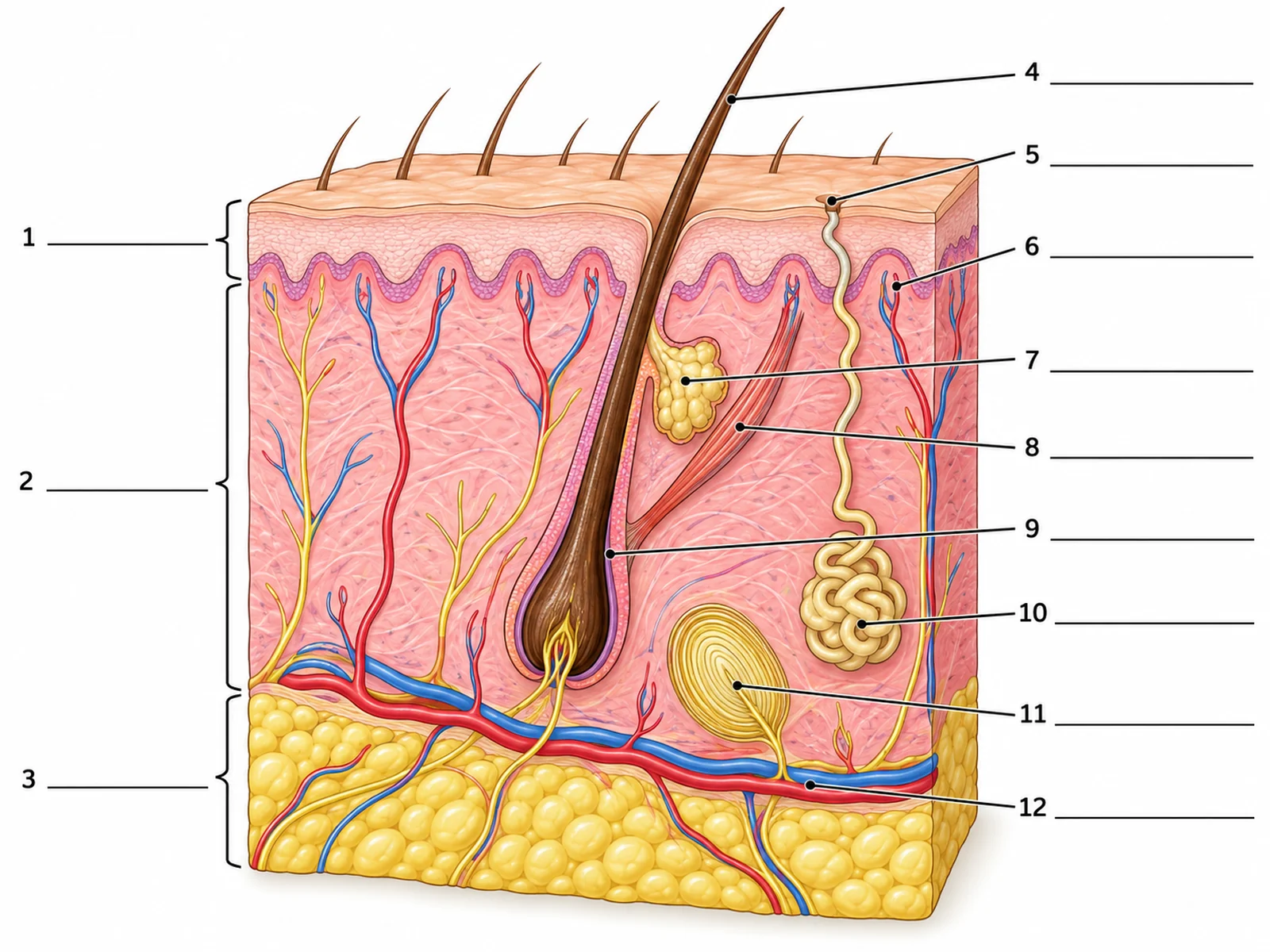

Most people searching for one want a skin diagram without labels. That means either a blank worksheet with numbered lines for students to fill in, or a clean unlabeled drawing for a slide or a quiz. This page makes both, along with the labeled version that serves as the answer key.

Parts of the skin to label

• Epidermis: the outer layer of stacked epithelial cells. It is waterproofed by keratin and has no blood vessels.
• Dermis: the thick connective-tissue layer beneath, with an upper papillary layer and a deeper reticular layer.
• Hypodermis (subcutaneous layer): mostly fat. It cushions and insulates and anchors the skin to the muscle below.
• Hair shaft, hair follicle, and hair bulb: the visible hair, the tube it grows in, and the growing base around the hair papilla.
• Sebaceous gland: an oil gland beside each follicle that empties sebum into it.
• Arrector pili muscle: a small smooth muscle that stands the hair up.
• Sweat gland, duct, and pore: a coiled gland deep in the dermis with a duct spiralling up to a pore on the surface.
• Dermal papillae: finger-like ridges of dermis pushing up into the epidermis, carrying capillary loops and touch receptors. On the fingertips they form fingerprints.
• Blood vessels and nerves: networks in the dermis and hypodermis, with fine branches up into the papillae.
• Sensory receptors: free nerve endings, Merkel cells, Meissner corpuscles, Pacinian corpuscles, and Ruffini endings.

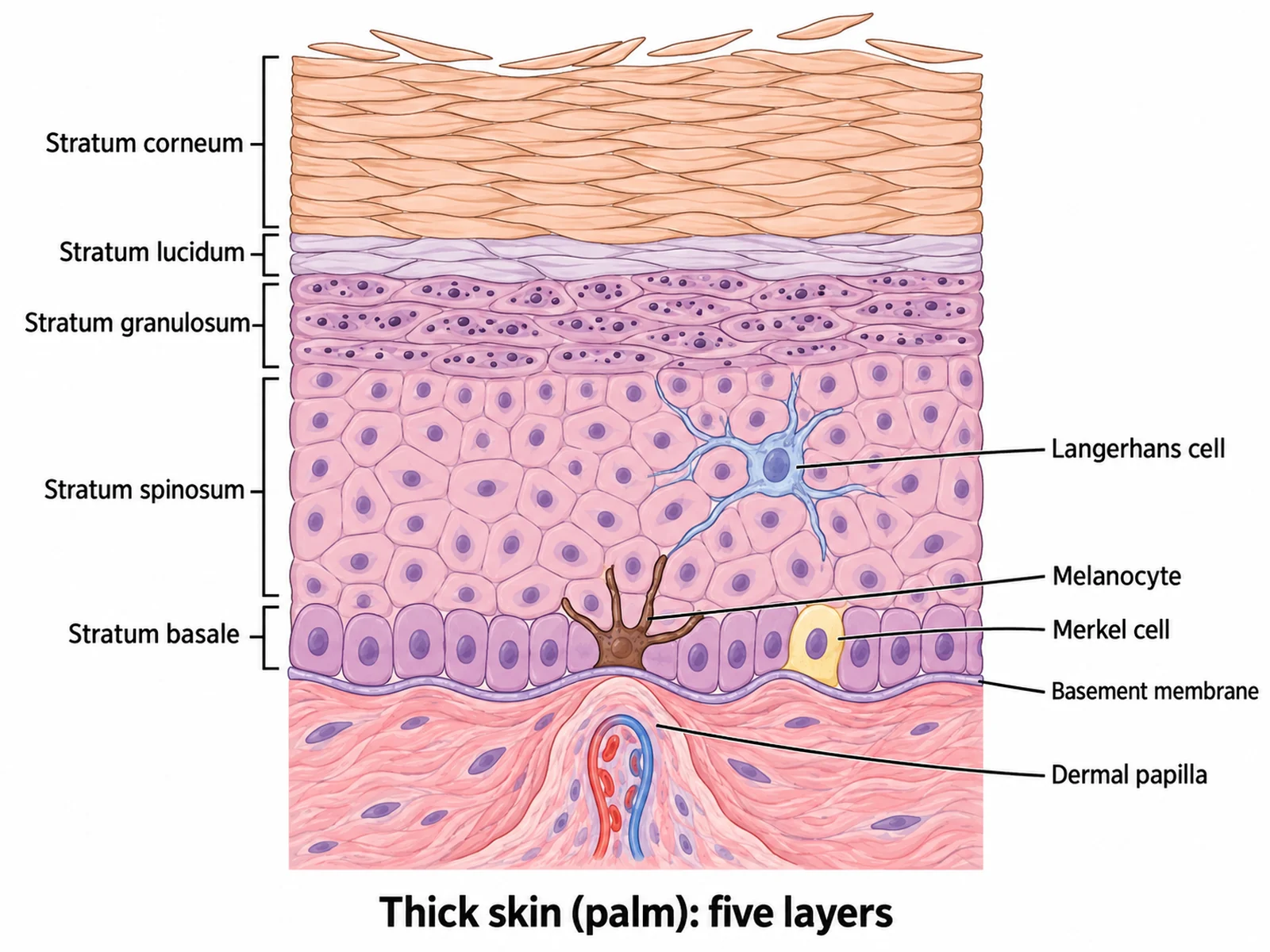

The epidermis and its five layers

The epidermis is built from the bottom up. New cells are made in the deepest layer and pushed toward the surface, changing as they go, until they die and flake off. OpenStax gives about four weeks for the surface layer to be replaced.

• Stratum basale: a single row of dividing stem cells on the basement membrane. Melanocytes sit among them and pass melanin up to the cells above; Merkel cells here sense touch.
• Stratum spinosum: several layers of keratinocytes joined by strong connections that look spiny under the microscope. It also holds the Langerhans cells of the immune system.
• Stratum granulosum: a few layers of flattening cells filling with keratin and waterproofing lipids. The cells here begin to die.
• Stratum lucidum: a thin, clear layer of dead cells found only in thick skin.
• Stratum corneum: many layers of flat, dead, keratin-filled cells. It is the actual barrier, and it is shed constantly.

The dermis and hypodermis

The dermis is the skin’s working layer. Its upper papillary layer is loose connective tissue. It forms the dermal papillae, which interlock with the epidermis like the teeth of a zip and hold its capillary loops and Meissner corpuscles. The deeper reticular layer is dense irregular connective tissue, a mesh of collagen for strength and elastic fibres for recoil. It houses the hair follicles, the sebaceous and sweat glands, larger blood vessels, and nerves. The loss of collagen and elastin here with age and sun exposure is what causes wrinkles.

The hypodermis below is not strictly part of the skin, but every skin diagram includes it. It is mostly adipose tissue, which stores energy and insulates, with the larger blood vessels and nerves that supply the dermis. Pacinian corpuscles and the bulbs of the deepest hair follicles often sit at the junction of dermis and hypodermis. Its thickness varies more than any other layer, both between body regions and between people.

Hair follicles, glands, and nails

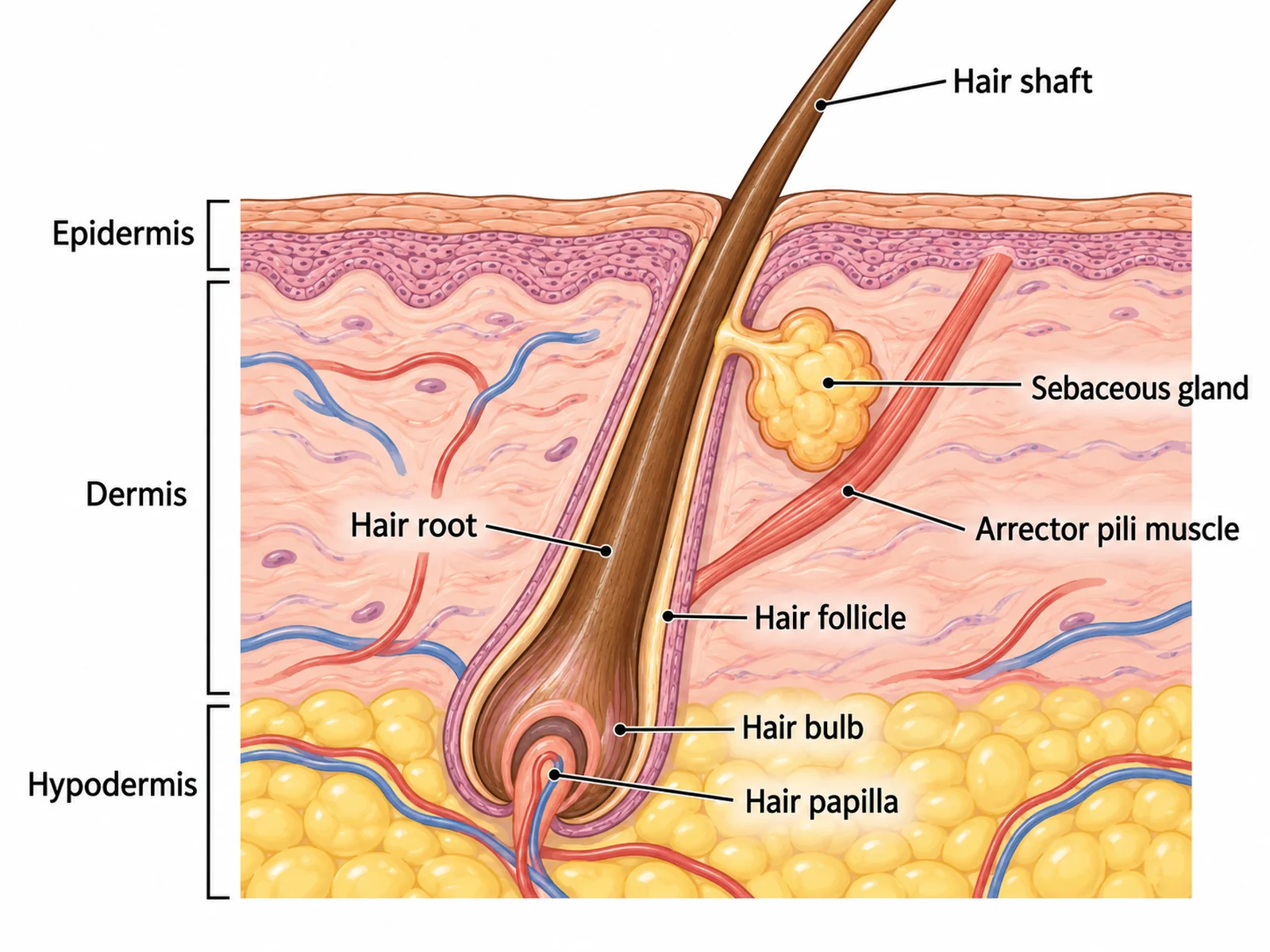

• Hair follicle: a sleeve of epidermis that dips down into the dermis. The hair grows from the matrix cells in the bulb, fed by the capillary in the hair papilla. The hair emerges at a slant, not straight up.
• Sebaceous gland: produces sebum, an oily mix that softens the hair and skin. It almost always opens into a follicle, which is why thick skin, with no hair, has no sebaceous glands.
• Arrector pili muscle: runs from the follicle to the upper dermis. Its contraction makes goose bumps, and in furry animals it fluffs the coat for insulation.
• Eccrine sweat glands: the most numerous sweat glands, especially dense on the palms, soles, and forehead. Their watery sweat cools the body as it evaporates.
• Apocrine sweat glands: in the armpits and groin. They open into hair follicles and become active at puberty; their secretion is what skin bacteria turn into body odour.
• Nails: plates of hard keratin made by the nail matrix under the cuticle. A nail diagram is a separate close-up.

Sensory receptors in the skin

The skin is a sense organ as well as a covering, and receptor diagrams test whether each receptor sits at the right depth.

• Free nerve endings: bare branches of sensory neurons that reach into the epidermis. They sense pain, heat, cold, and itch.
• Merkel cells: in the stratum basale, paired with nerve endings. They sense light, steady touch, such as texture and shape.
• Meissner (tactile) corpuscles: small oval capsules in the dermal papillae, most common in hairless skin such as the fingertips and lips. They sense light touch.
• Pacinian (lamellated) corpuscles: large onion-like capsules deep in the dermis and hypodermis. They sense deep pressure and vibration.
• Ruffini endings: in the dermis. They sense stretching of the skin.
• Hair follicle receptors: nerve endings wrapped around the follicle. They sense the hair being moved.

Thick skin and thin skin

The words refer to the epidermis. Thick skin covers the palms, the soles, and the fingertips. It has five epidermal layers including the stratum lucidum, a very thick stratum corneum, many sweat glands, and friction ridges, but no hair follicles and no sebaceous glands. Thin skin covers everywhere else. It has four epidermal layers, a thinner stratum corneum, and hair follicles with their sebaceous glands and arrector pili muscles. That gives two easy checks for any diagram. If it shows hair, it should not show a stratum lucidum. If it is labeled as palm skin, it should show no hair.

What the skin does

• Protection: the stratum corneum and its lipids block microbes and stop the body drying out. Melanin absorbs ultraviolet light before it can damage the dividing cells of the stratum basale.
• Temperature control: sweating cools the body by evaporation, and the dermal blood vessels widen to shed heat or narrow to keep it.
• Sensation: receptors for touch, pressure, vibration, stretch, temperature, and pain make the skin the body’s largest sense organ.
• Vitamin D: ultraviolet light converts a cholesterol-based molecule in the skin into a precursor of vitamin D. The liver and kidneys then turn it into the active hormone.
• Immune defense: Langerhans cells in the epidermis catch invading microbes and present them to the immune system.

Reading a skin cross section: scale and proportion

A skin diagram is drawn hugely magnified, and the proportions are where generated figures most often go wrong. The epidermis ranges from about 0.05 mm on the eyelids to about 1.5 mm on the soles. The dermis below is usually several times thicker, from about 0.3 mm to around 3 mm. The hypodermis varies most of all, from almost nothing to several centimetres of fat. A cross section of thin skin should therefore show a narrow epidermis over a broad dermis, never two bands of equal height.

Structures follow the same logic. Hair follicles and sweat glands are rooted deep in the dermis or at the top of the hypodermis, so they are drawn reaching well down the section, while their ducts and shafts pass up through the narrow epidermis. Capillaries reach only as far as the dermal papillae. Blocks of skin are usually drawn with the surface at the top, the cut faces at the front and side, and the hypodermis at the bottom resting on a hint of muscle.

Skin colour and melanin

Skin colour comes mainly from melanin, made by melanocytes in the stratum basale and passed in small packets to the keratinocytes above, where it forms a cap over each nucleus that shields its DNA from ultraviolet light. People of all skin colours have roughly the same number of melanocytes. The difference is how much melanin they make and which kind: dark brown to black eumelanin, or reddish-yellow pheomelanin. Carotene from the diet adds a yellow-orange tint, and blood in the dermal capillaries shows through as pink, which is why skin flushes with heat and pales with cold. Sun exposure makes melanocytes increase their output, producing a tan. A diagram that shows melanocytes should put them in the deepest layer, with their branches reaching between the cells above.

How skin heals

A scrape that stays within the epidermis heals completely, because the stem cells of the stratum basale divide and cover it from below and from the edges. A cut that reaches the dermis heals in stages. Bleeding vessels form a clot, which dries into a scab. White blood cells clear debris and bacteria. Fibroblasts in the dermis lay down new collagen, and new capillaries grow in as granulation tissue, while the epidermis creeps across from the wound edges under the scab. Over the following months the collagen is remodelled. Because the new dermis is mostly collagen, it lacks the original hair follicles and glands, and that patch is a scar. A deep wound that destroys the epidermis across a wide area cannot be covered from its edges in time and may need a skin graft.

Burns and skin depth

Health courses often use the skin diagram to explain burn depth, because the classification follows the layers. A superficial (first-degree) burn involves only the epidermis; it is red and painful but heals without scarring. A partial-thickness (second-degree) burn extends into the dermis and blisters. A full-thickness (third-degree) burn destroys the epidermis and the whole dermis, including the nerve endings, so it may be less painful at the centre. It cannot regrow from its own edges and often needs a graft. Ask for a burn-depth panel if you need one; the generator will not add it unasked.

Skin diagram labels by level

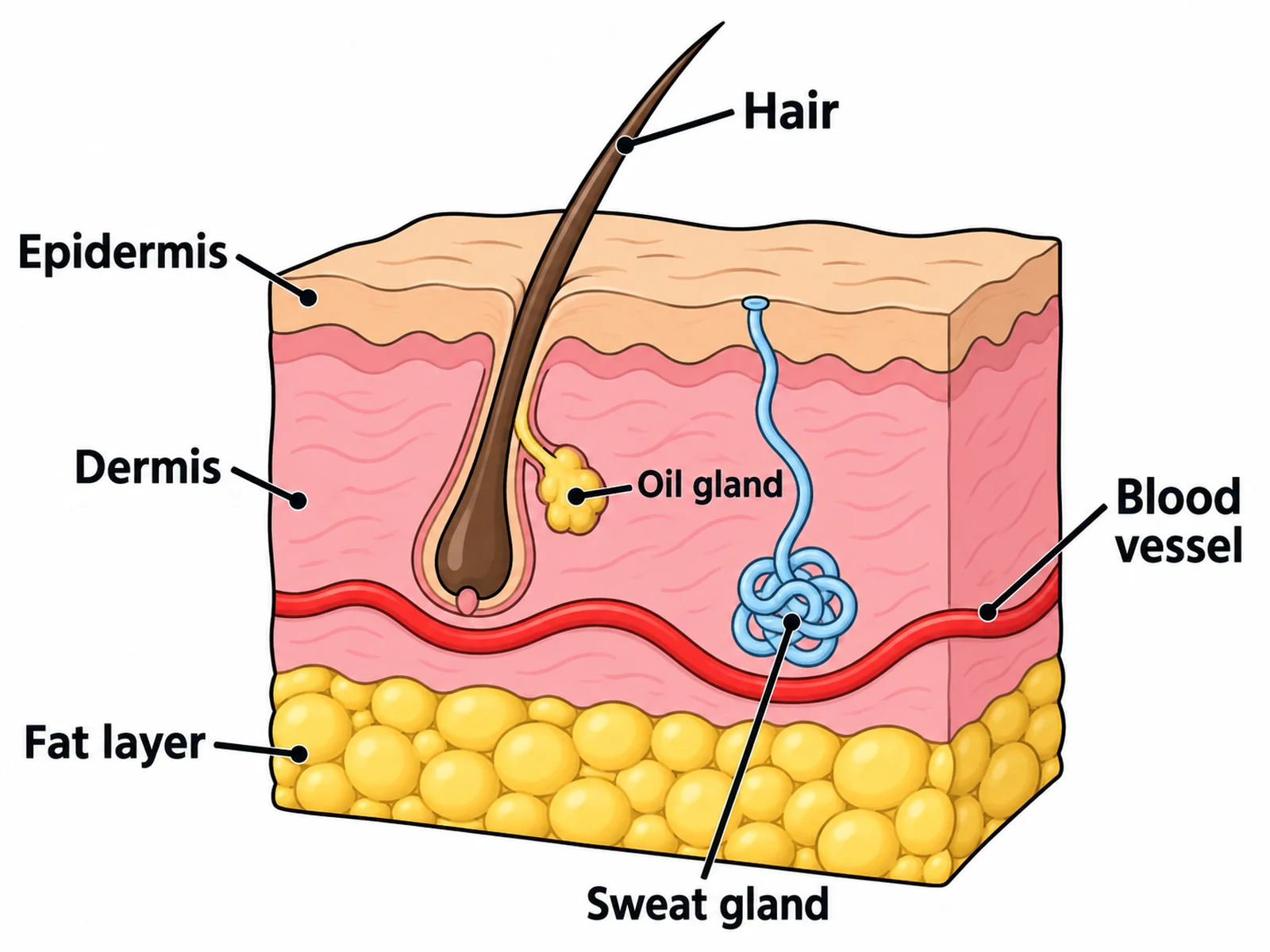

• Middle school: about seven parts with everyday names, such as epidermis, dermis, fat layer, hair, sweat gland, oil gland, and blood vessel.
• High school: the three layers plus the hair shaft and follicle, sebaceous gland, arrector pili muscle, sweat gland and pore, blood vessels, a nerve, and one sensory receptor.
• College: the high-school set plus the papillary and reticular dermis, the dermal papillae, the hair bulb and papilla, and the Meissner and Pacinian corpuscles.
• Medical: the five epidermal strata and their cell types, the receptor types at their depths, and the vascular plexuses of the dermis.

The skin as an organ

The skin is usually called the body’s largest organ. In an adult it covers roughly 1.5 to 2 square metres and makes up a large share of body weight. With the hair, nails, and glands it forms the integumentary system. It counts as an organ, not just a covering, because it is built from all four tissue types working together: epithelium in the epidermis, connective tissue in the dermis and hypodermis, smooth muscle in the arrector pili and vessel walls, and nervous tissue in its receptors and nerves. A good skin diagram shows all four.

Using a skin diagram without labels in class

• Blank first, key second: hand out the skin diagram without labels, then show the answer key made from the same result so the numbers line up.
• Layers as brackets, structures as lines: twelve blanks work well, three layer brackets and nine structures.
• Use the unlabeled drawing for discussion: project it and have students name parts aloud before the worksheet.
• Add the epidermis close-up for older students, who are expected to name the five strata in order.
• Use thick vs thin skin as a check: the two sections side by side show why palms have no hair and no oil glands.
