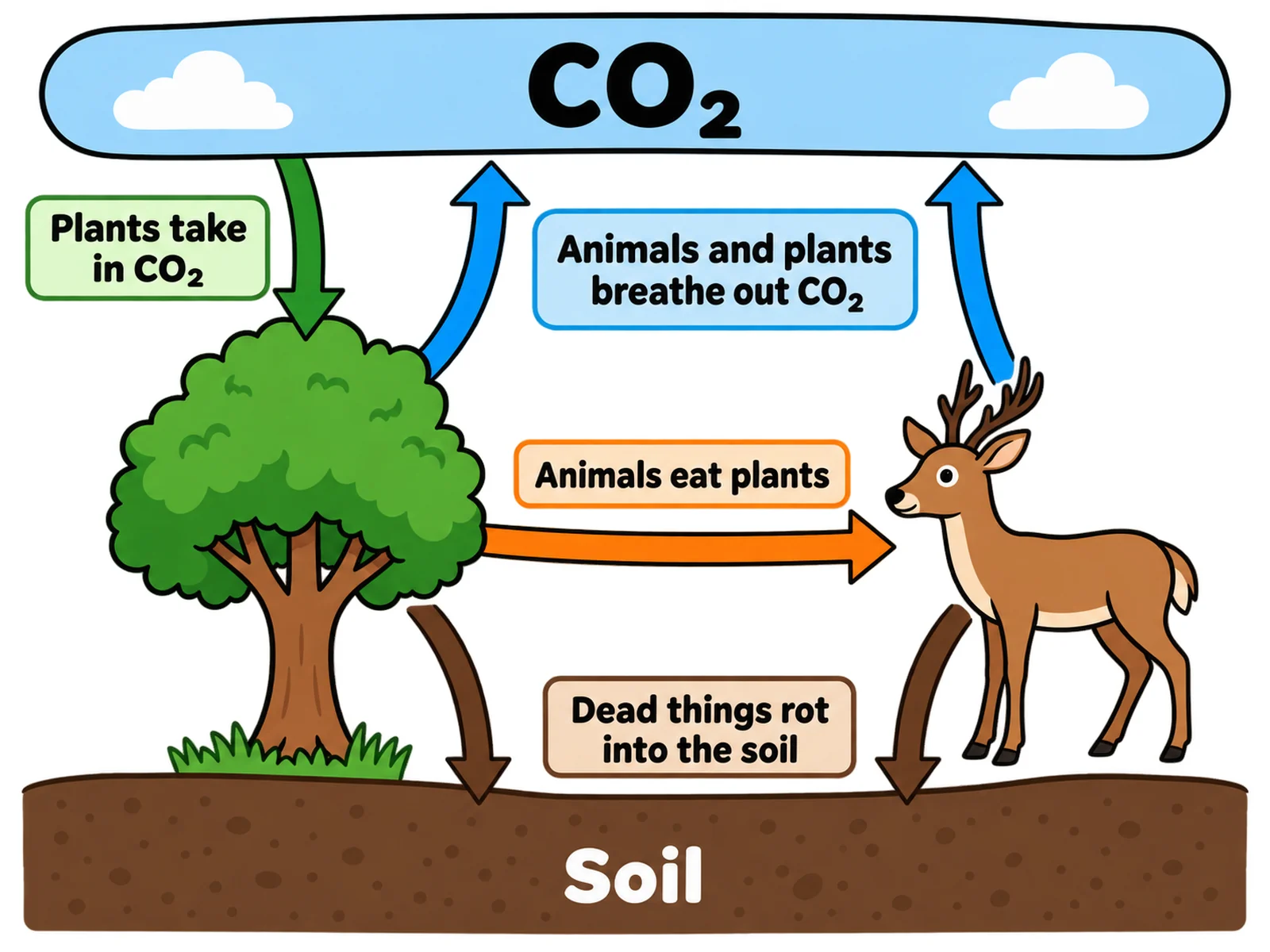

Simple easy-to-draw carbon cycle for younger students with four labeled arrows

Prompt

Create a simple, easy-to-draw carbon cycle diagram for primary or lower-secondary students. Use bold flat colors, thick clean outlines, and large readable text. Show only four elements: a CO2 band at the top, one tree, one animal, and the soil. Draw only four thick labeled arrows in plain wording: "Plants take in CO2", "Animals and plants breathe out CO2", "Animals eat plants", and "Dead things rot into the soil". Plenty of white space, no factory, no fossil fuels.

Simple Carbon Cycle

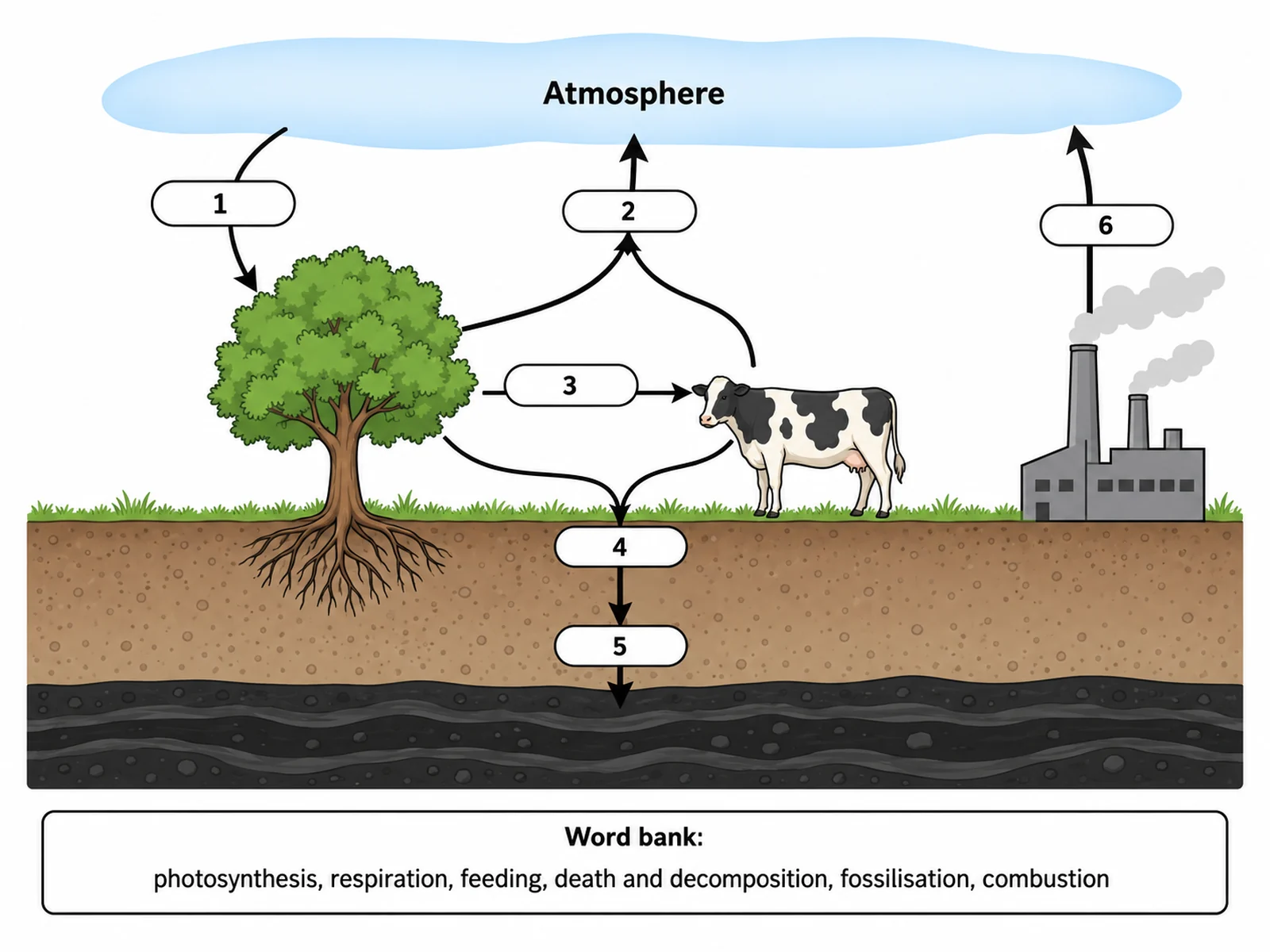

Blank carbon cycle diagram with empty arrow labels and numbered boxes for students to complete

Prompt

Create a blank carbon cycle worksheet. Draw the same scene — atmosphere band, tree, cow, soil, fossil fuel seam, factory — in clean line art with soft flat fills and no process text. Draw each arrow with an empty white pill on it where the label would go, numbered 1 to 6. Add a word bank box below reading "photosynthesis, respiration, feeding, death and decomposition, fossilisation, combustion". Generous white space, no answer key.

Blank Carbon Cycle Worksheet

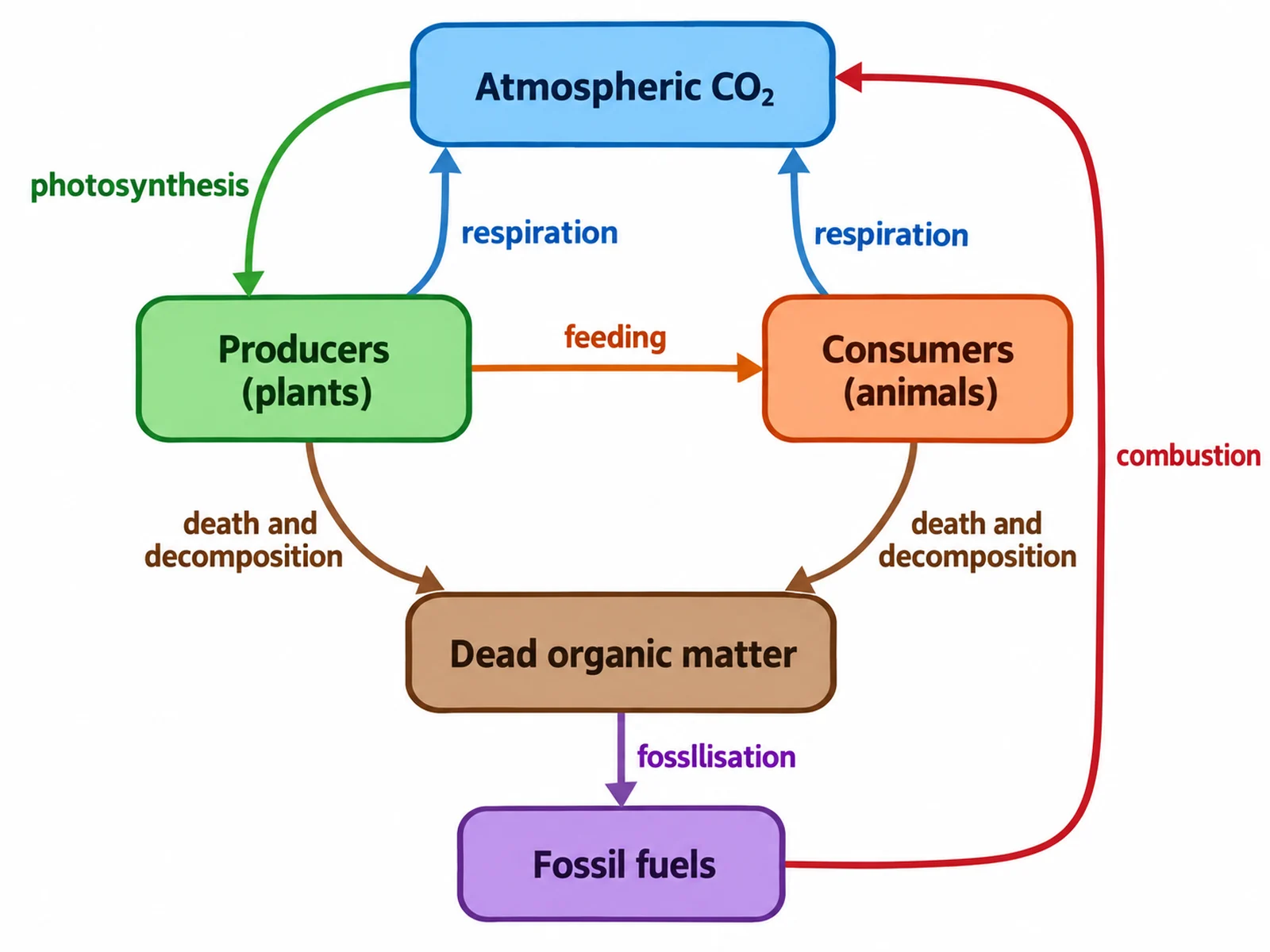

Carbon cycle drawn as a flow chart of labeled boxes and arrows rather than a landscape scene

Prompt

Create a carbon cycle flow chart on a white background. Draw five rounded boxes connected by labeled arrows in a loop: "Atmospheric CO2" at the top, "Producers (plants)" on the left, "Consumers (animals)" on the right, "Dead organic matter" at the bottom, and "Fossil fuels" below that. Label the connecting arrows "photosynthesis", "feeding", "respiration", "death and decomposition", "fossilisation", and "combustion". Use a distinct color per box and keep every arrow direction correct.

Carbon Cycle Flow Chart

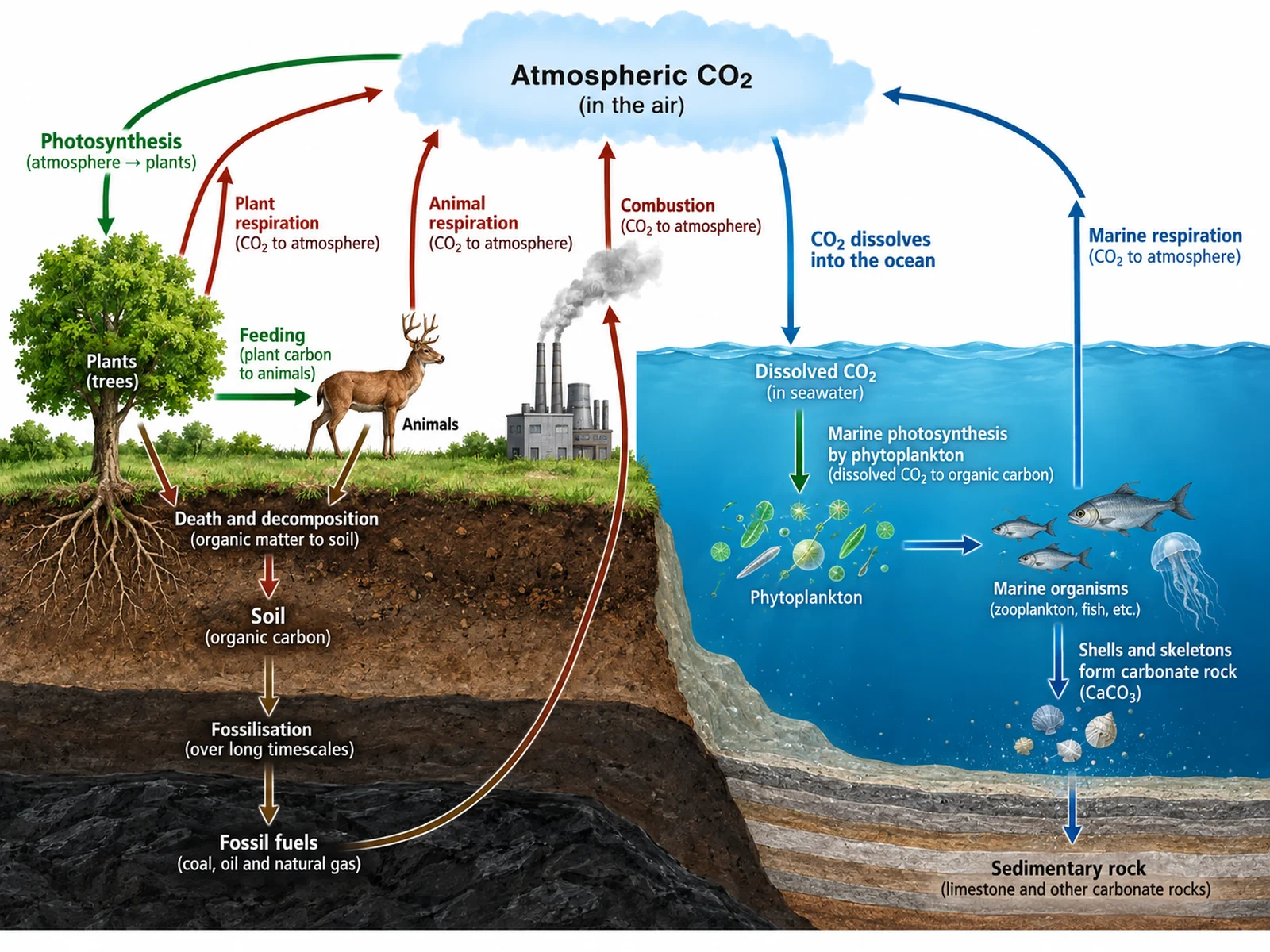

Carbon cycle diagram including ocean uptake, dissolved CO2, marine organisms, and sedimentary carbonate rock

Prompt

Create an extended carbon cycle diagram that includes the ocean, on a white background. Show the land on the left with a tree, an animal, soil, and a factory, and the ocean on the right in cross-section. Add ocean-specific labeled arrows: "CO2 dissolves into the ocean" pointing down at the sea surface, "Marine photosynthesis by phytoplankton", "Marine respiration", and "Shells and skeletons form carbonate rock" pointing to a layered seabed labeled "Sedimentary rock". Keep the land arrows from the standard cycle labeled as well.

Carbon Cycle with the Ocean

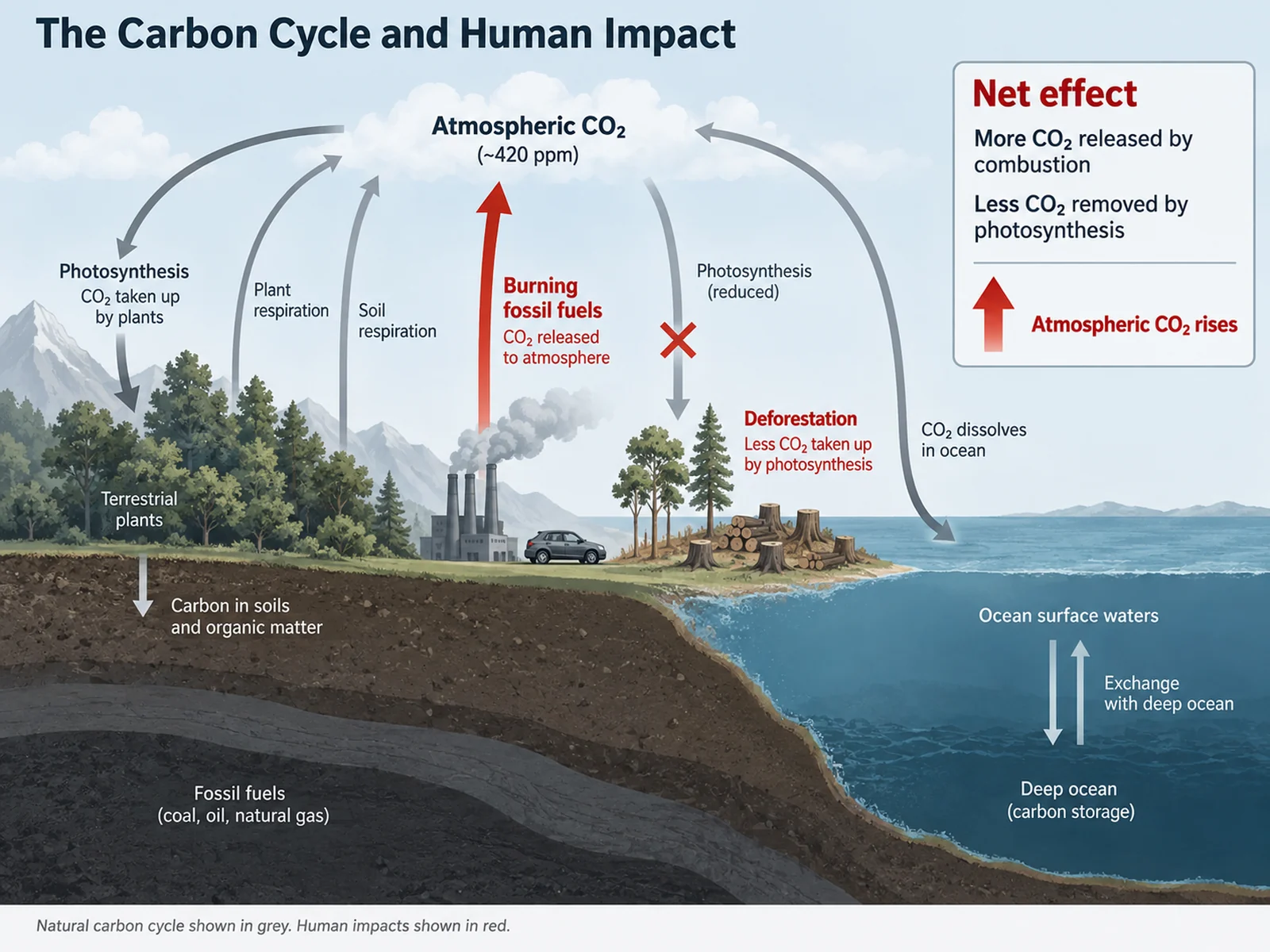

Carbon cycle diagram highlighting how combustion and deforestation increase atmospheric carbon dioxide

Prompt

Create a carbon cycle diagram that highlights human impact. Draw the standard cycle in muted grey tones, then pick out two arrows in a strong red: "Burning fossil fuels" rising from a factory and a car, and "Deforestation" shown as felled trees with a crossed-out photosynthesis arrow. Add a small side panel headed "Net effect" with two short lines: "More CO2 released by combustion" and "Less CO2 removed by photosynthesis", and a short arrow pointing up labeled "Atmospheric CO2 rises".

Human Impact on the Carbon Cycle

How to draw a carbon cycle diagram

1

Choose the level of detail

Four arrows for a simple class drawing, six for a full labeled cycle, or an extended version with ocean uptake and human impact.

2

Generate the diagram

The generator lays out the atmosphere, plants, animals, soil, and fossil fuels, then attaches the right process to each arrow.

3

Check the arrows, then export

Confirm photosynthesis points into the plant and respiration points into the air, then download the PNG for a worksheet, slide, or revision sheet.

What is the carbon cycle?

The carbon cycle describes how carbon atoms move between the atmosphere, living things, soil, rock, and the ocean. Carbon is never used up: the same atoms pass from carbon dioxide into a leaf, along a food chain, into the soil, sometimes into fossil fuels over millions of years, and eventually back into the air. A carbon cycle diagram makes that movement visible by drawing one labeled arrow per process.

The processes to label on every arrow

  • Photosynthesis: plants and phytoplankton take atmospheric CO2 and use light energy to build glucose. This is the main route out of the atmosphere.
  • Respiration: plants, animals, and microbes break down glucose for energy and release CO2 back into the air.
  • Feeding: carbon locked in plant tissue passes to animals along the food chain.
  • Death and decomposition: decomposers break down dead matter, returning carbon to the soil and the air.
  • Fossilisation: buried organic matter compressed over millions of years becomes coal, oil, and natural gas.
  • Combustion: burning fossil fuels or biomass releases stored carbon rapidly as CO2.
  • Ocean exchange: CO2 dissolves at the sea surface, and marine organisms lock some into carbonate shells that become sedimentary rock.

Common errors to check before you print

  • Photosynthesis arrow reversed. It must run from the atmosphere INTO the plant, not out of it.
  • Respiration shown for animals only. Plants respire too, day and night.
  • Combustion and respiration merged. Both release CO2, but they are separate processes and need separate arrows.
  • Fossil fuels drawn above ground. They are buried, which is why fossilisation takes millions of years.

Carbon Cycle Diagram Generator FAQ

Photosynthesis, which moves carbon from atmospheric CO2 into plants; respiration by plants, animals, and microbes, which returns CO2 to the air; feeding, which moves carbon along food chains; death and decomposition, which release carbon from dead matter; fossilisation, which locks carbon into coal, oil, and gas over millions of years; and combustion of fossil fuels and biomass, which returns that carbon rapidly. Ocean exchange and dissolved CO2 belong on a fuller version.

Explore More Earth Science Tools

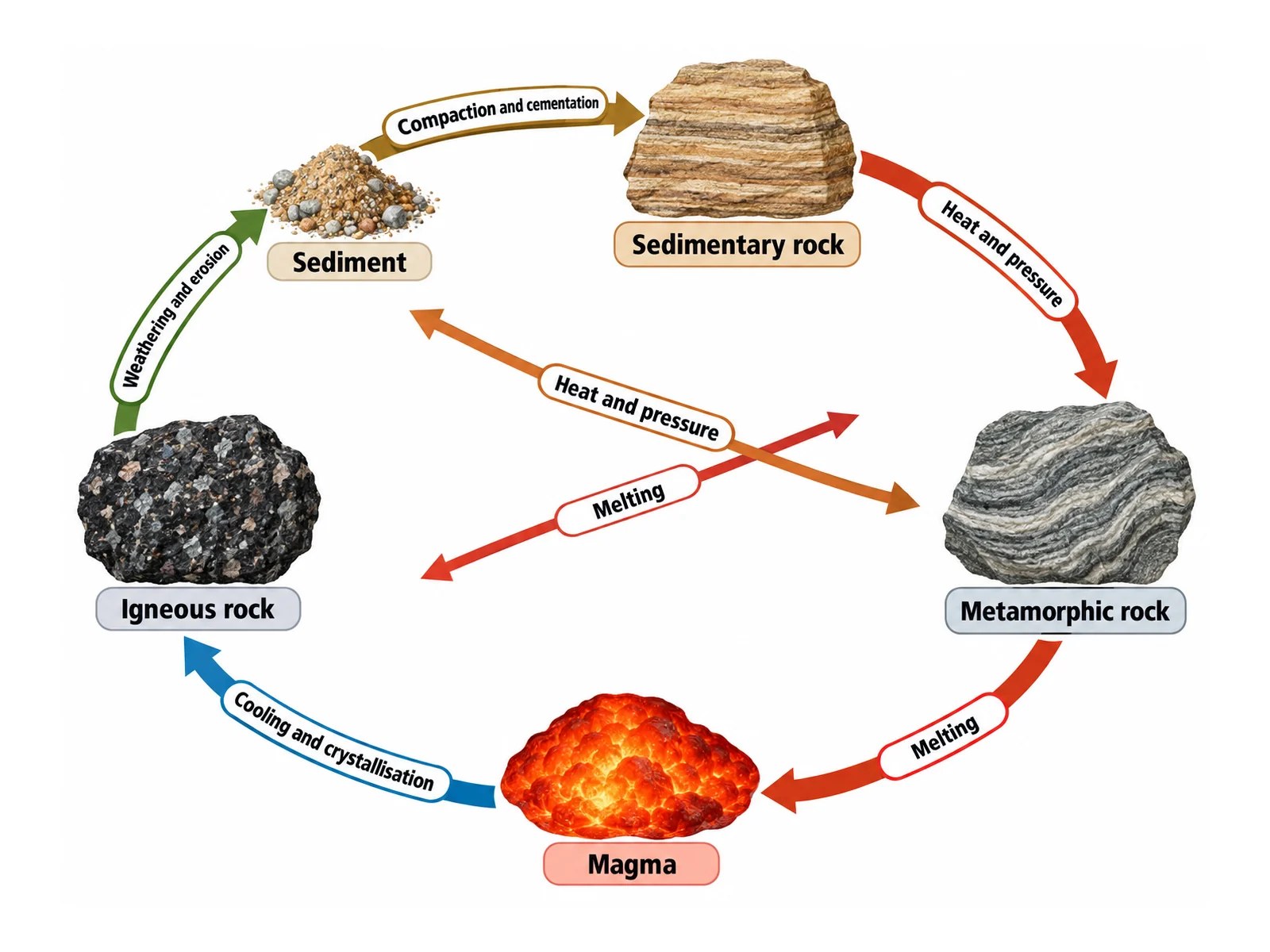

Rock Cycle Diagram Generator preview
