Lymphatic System Diagram: Labeled & Blank

What is a lymphatic system diagram?

A lymphatic system diagram is a labeled drawing of the vessels, nodes, and organs that drain fluid from the body’s tissues and return it to the blood. The usual version shows a front-facing body outline with the lymphatic system drawn in green on top. It shows clusters of lymph nodes in the neck, armpits, and groin, vessels running up the limbs, the thoracic duct climbing beside the spine, and the lymphoid organs: tonsils, thymus, spleen, and bone marrow.

Teachers use it in two forms. A lymphatic system diagram with labels names every part and works as a reference or answer key. A lymphatic system diagram to label keeps the drawing and the leader lines but leaves numbered blanks for students to fill in. This page generates both from one description, plus a numbered version with a key and a worksheet with a word bank.

Parts of the lymphatic system to label

• Lymphatic capillaries: blind-ended tubes among the tissue cells. Their overlapping wall cells act as one-way flaps, letting tissue fluid in but not out.
• Lymphatic vessels: larger collecting vessels with valves, running alongside veins. They carry lymph toward the trunk.
• Lymph nodes: small bean-shaped filters in clusters along the vessels. They trap pathogens and debris and house lymphocytes.
• Lymphatic trunks: the jugular, subclavian, bronchomediastinal, intestinal, and lumbar trunks. They gather lymph from large regions.
• Cisterna chyli: a small sac in front of the upper lumbar spine where the lymph from the legs and gut collects.
• Thoracic duct: the main channel. It rises from the cisterna chyli through the chest and empties into the veins at the base of the neck on the person’s left.
• Right lymphatic duct: a short duct that drains the right arm and the right side of the head, neck, and chest into the veins on the person’s right.
• Lymphoid organs: red bone marrow and the thymus, where lymphocytes are made and mature, plus the spleen, the tonsils, and patches of lymphoid tissue in the gut wall.

How lymph flows: from tissue fluid back to the blood

Most of the plasma that leaks out of the blood capillaries is reabsorbed. OpenStax gives about 20 liters leaving the blood each day and about 17 liters taken back, which leaves roughly 3 liters in the tissues for the lymphatic system to return. Without it the tissues would swell, which is what happens in lymphedema.

• Fluid leaves the blood capillaries and bathes the cells as tissue fluid.
• Tissue fluid enters the lymphatic capillaries and from then on is called lymph.
• Lymph moves through collecting vessels, whose valves stop it from flowing back.
• It passes through one or more lymph nodes, where it is filtered and checked by lymphocytes.
• Efferent vessels from the nodes join lymphatic trunks, which feed either the right lymphatic duct or the thoracic duct.
• Both ducts empty into the large veins at the base of the neck, where the subclavian and internal jugular veins meet. The lymph rejoins the blood on its way back to the heart.
• Nothing pumps lymph. It is squeezed along by contracting skeletal muscles, by pressure changes in the chest during breathing, and by smooth muscle in the larger vessel walls. The valves make every squeeze push it the same way.

The right lymphatic duct and the thoracic duct

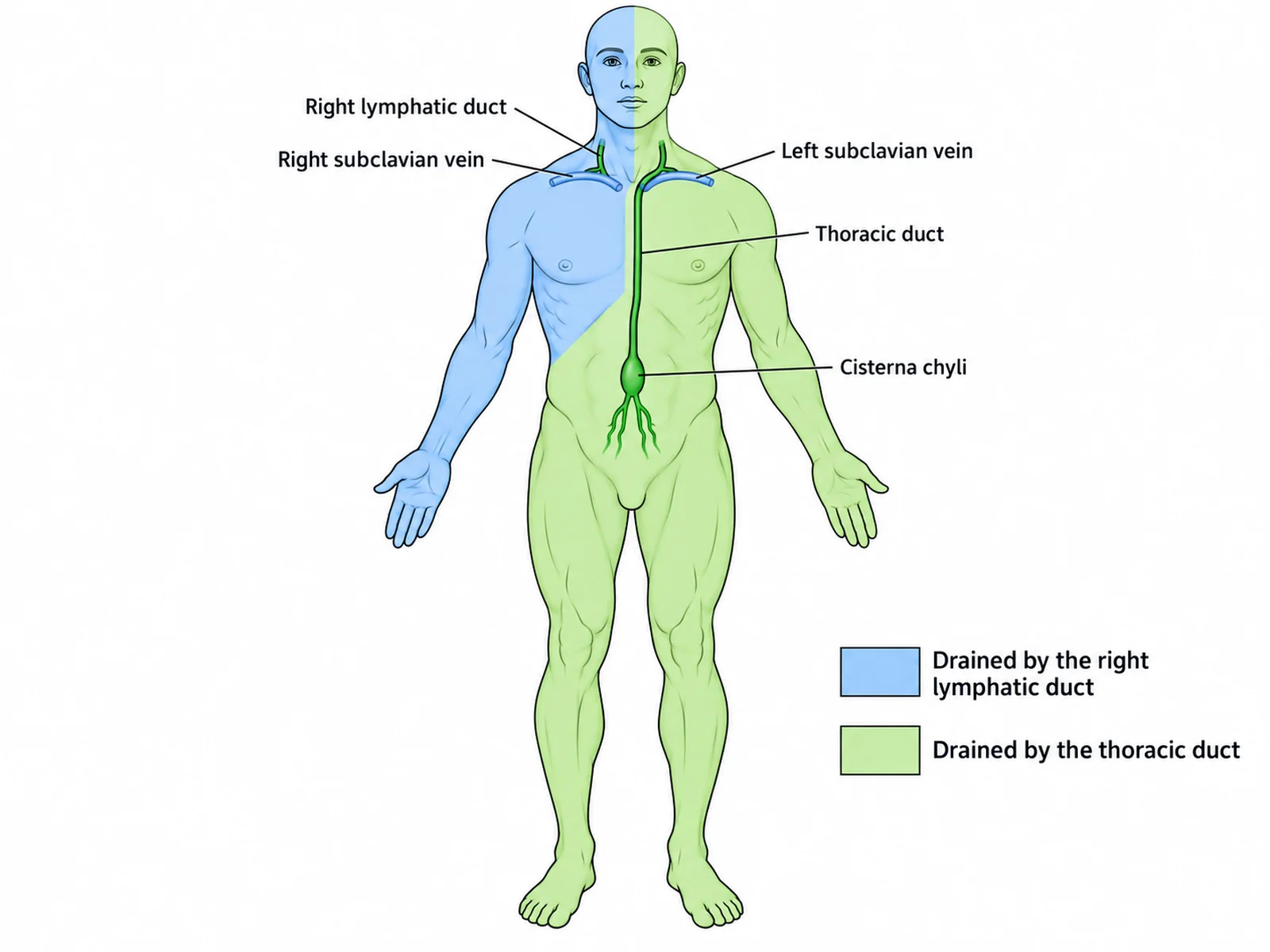

The most tested fact on a lymphatic system diagram is that the drainage is lopsided. The right lymphatic duct is only a centimeter or two long. It collects lymph from the right arm and the right side of the head, neck, and chest, roughly the upper right quarter of the body. The thoracic duct handles everything else: both legs, the pelvis and abdomen, the left arm, and the left side of the head, neck, and chest.

The thoracic duct begins at the cisterna chyli in the upper abdomen, passes up through the diaphragm and the back of the chest beside the vertebral column, and crosses to the left. It empties at the junction of the left subclavian and left internal jugular veins. On a front-view diagram that ending is on the viewer’s right, because the person’s left is on your right. A diagram that draws two matching ducts, or ends the thoracic duct on the person’s right, is wrong.

A lymph node body chart: where the nodes cluster

Lymph nodes are not spread evenly through the body. They gather where vessels from a region converge, often near a joint or the root of a limb. A lymph node body chart marks those groups on an outline of the body.

• Cervical nodes: along the jaw and down the sides of the neck. They drain the head and neck, and swell with throat infections.
• Supraclavicular nodes: just above the collarbone, close to where the ducts empty.
• Axillary nodes: in the armpit. They drain the arm and much of the chest wall and breast, which is why they matter in breast cancer staging.
• Mediastinal nodes: in the chest around the airways and great vessels.
• Abdominal nodes: the mesenteric nodes along the gut, and the para-aortic nodes beside the aorta.
• Inguinal nodes: in the groin. They drain the leg, the lower abdominal wall, and the skin of the genital area.
• Popliteal and cubital nodes: smaller groups behind the knee and near the elbow.

Inside a lymph node

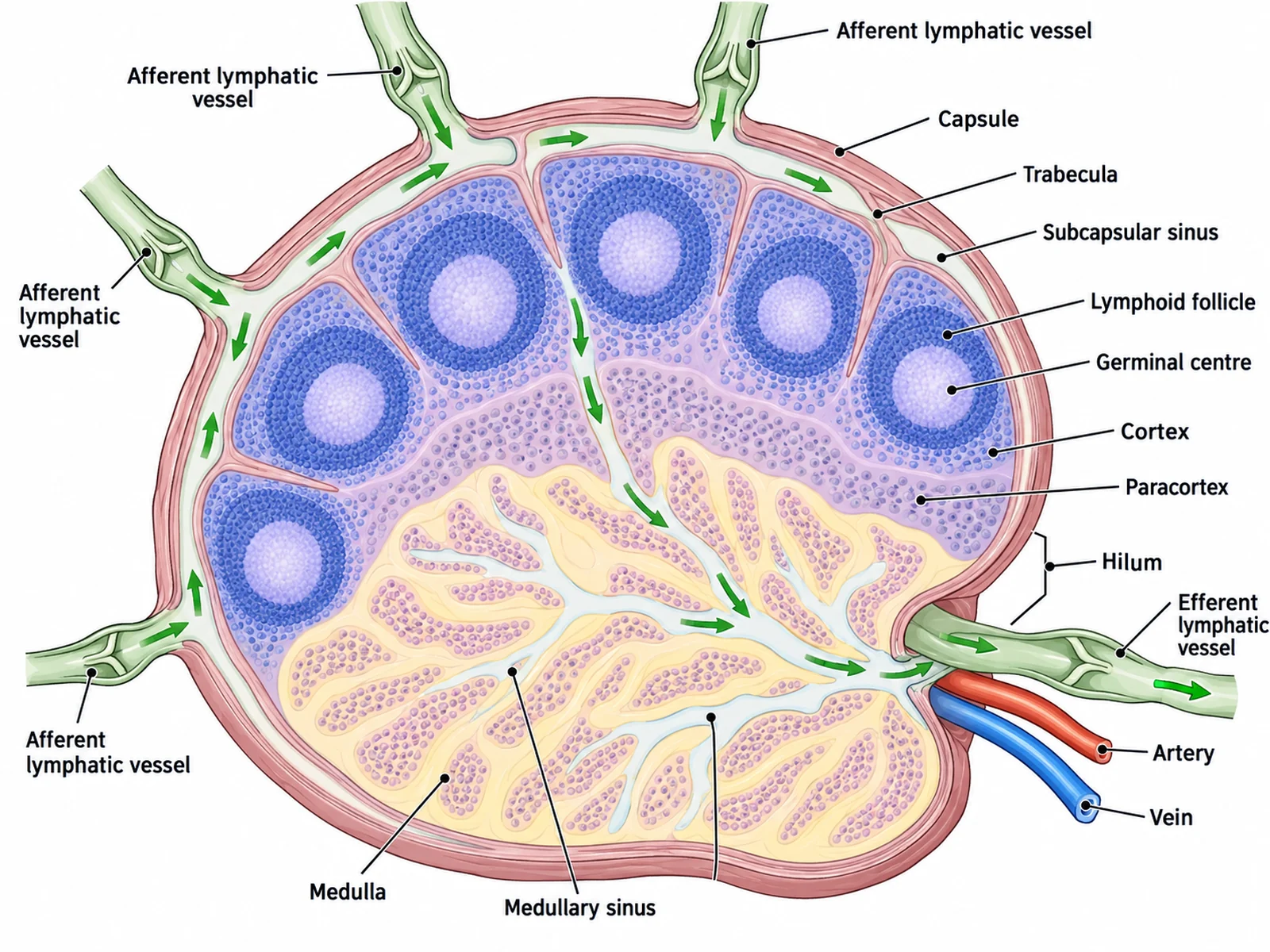

A lymph node close-up is the second most common lymphatic figure. The node is bean-shaped, wrapped in a fibrous capsule that sends partitions called trabeculae inward. Lymph arrives through several afferent vessels around the curved outer surface and spreads through the subcapsular sinus under the capsule. It filters through the outer cortex, where B cells gather in round lymphoid follicles with pale germinal centres, then the paracortex, where T cells cluster, then the medulla, with its medullary cords and sinuses. It leaves through the efferent vessel at the hilum, the indented side where an artery and a vein also enter and leave. Because more vessels bring lymph in than take it out, flow through the node slows, which gives its immune cells time to find anything foreign.

Lymphoid organs: marrow, thymus, spleen, tonsils, and gut tissue

• Red bone marrow: a primary lymphoid organ. It makes all blood cells, including lymphocytes; B cells also mature here.
• Thymus: the other primary lymphoid organ, where T cells mature. It sits in the upper chest behind the breastbone. It is largest relative to body size in childhood and is gradually replaced by fat after puberty.
• Spleen: the largest secondary lymphoid organ, in the upper left abdomen under ribs 9 to 11. It filters blood, not lymph, removing worn-out red cells and responding to blood-borne infections.
• Tonsils: rings of lymphoid tissue guarding the throat. They are the palatine tonsils at the sides, the adenoid (pharyngeal tonsil) at the back of the nose, and the lingual tonsil at the base of the tongue.
• Mucosa-associated lymphoid tissue: clusters in the walls of the gut and airways, including Peyer’s patches in the small intestine and lymphoid tissue in the appendix.

What the lymphatic system does

• Fluid balance: it returns the roughly 3 liters of fluid a day that the blood capillaries do not take back, with the protein that has leaked into the tissues.
• Fat absorption: lacteals in the intestinal villi take up dietary fats and fat-soluble vitamins as milky chyle and carry them to the thoracic duct.
• Immune defense: lymph nodes filter lymph, and the lymphocytes in the nodes, spleen, tonsils, and gut tissue recognize and respond to pathogens. Swollen, tender nodes usually mean the nodes are fighting an infection in the area they drain.

Lacteals and the lymph from the gut

The lymph that drains the small intestine is different from lymph anywhere else. Each villus in the intestinal lining has a single blind-ended lymphatic capillary at its core, the lacteal, surrounded by a net of blood capillaries. Sugars and amino acids pass into the blood capillaries. Digested fats are packed into droplets too large to enter them, so they pass into the lacteal instead. The fat-laden lymph, called chyle, is milky white. It flows through the mesenteric lymph nodes and the intestinal trunk into the cisterna chyli, up the thoracic duct, and into the blood at the base of the neck. This is why a diagram of the digestive system’s villi and a diagram of the lymphatic system share one structure, and why the thoracic duct is drawn starting in the abdomen rather than the chest.

When the lymphatic system goes wrong

Health and medical courses often add a disease panel to the standard diagram. These are the conditions it usually covers.

• Swollen lymph nodes: the nodes draining an infected area enlarge as their lymphocytes multiply. That is why a sore throat brings up tender nodes under the jaw.
• Lymphedema: if lymph vessels or nodes are blocked, damaged, or removed, fluid builds up in the tissues they drain. A common example is arm swelling after the axillary nodes are removed in breast cancer surgery.
• Cancer spread: tumor cells can travel in the lymph to the nearest nodes. Surgeons sample the first node a tumor drains to, the sentinel node, to see whether it has spread.
• Lymphoma: a cancer of the lymphocytes themselves, which often first shows as painless, enlarged nodes.
• Lymphatic filariasis: parasitic worms carried by mosquitoes block the lymph vessels and can cause severe swelling of the legs.

Lymphatic vessels, veins, and the immune system

Lymphatic vessels run alongside veins. Both carry fluid back toward the heart, both rely on valves and muscle squeeze rather than a pump, and the lymph finally joins the venous blood. That is why diagrams show them together and why they are easy to confuse. The difference to draw is that lymph vessels begin as closed tubes in the tissues and pass through nodes on the way. A lymphatic system diagram also overlaps with the immune system. The tonsils, thymus, spleen, nodes, and marrow appear in both. An immune system diagram focuses on the cells, such as B cells, T cells, and macrophages, while a lymphatic system diagram focuses on the vessels and organs that hold and move them.

Simple and easy lymphatic system drawings

For younger classes a simple lymphatic system diagram works better than a full anatomical one. Six labels are usually enough: lymph nodes, lymph vessels, tonsils, thymus, spleen, and bone marrow. Draw them on a plain body outline with thick lines and large text. The middle school level in the menu does this. A good easy drawing still keeps the facts right: the spleen on the person’s left, the thymus in the chest, and a short caption saying lymph flows one way, back toward the heart. Students who later move to a full diagram then add detail to what they know rather than unlearning it.

Using a lymphatic system diagram to label in class

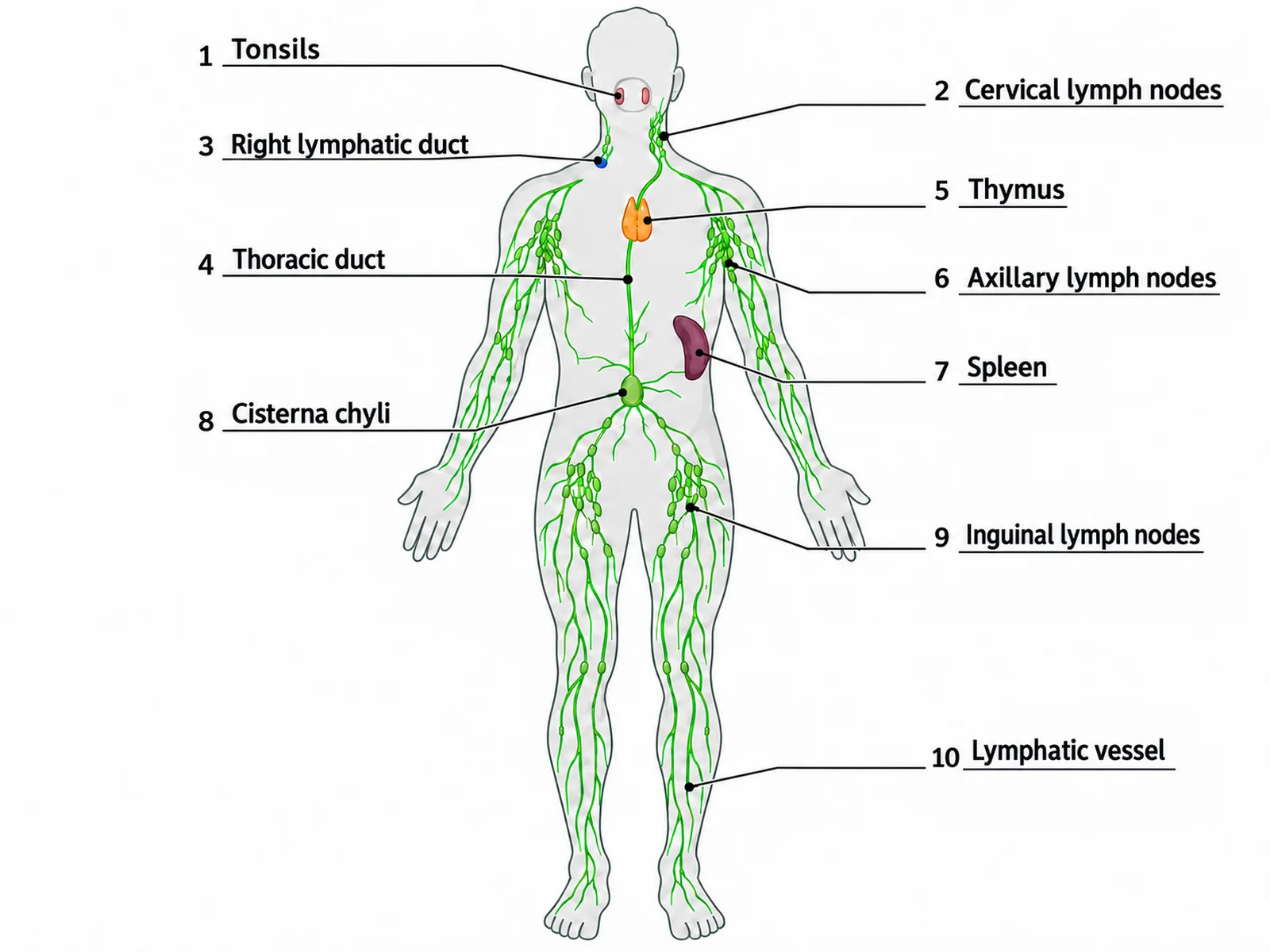

• Blank first, key second: hand out the blank worksheet, then show the answer key made from the same result so every number matches.
• Ten labels is a good size: tonsils, cervical nodes, both ducts, thymus, axillary nodes, spleen, cisterna chyli, inguinal nodes, and a vessel.
• Add the drainage map as a second sheet: students shade which duct drains each region before they label the ducts.
• Use the flow chart to test order: have students put the stages from tissue fluid to the subclavian vein in sequence.
• Word bank or not: include one for revision, leave it out for a test. It is printed in alphabetical order, so it gives nothing away.

Colors and conventions in lymphatic diagrams

By convention lymphatic vessels and nodes are drawn in green. Real lymph is clear to pale yellow, and chyle from the gut is milky white. Green is used because it stands apart from the red arteries and blue veins that often appear in the same figure. When a diagram shows both systems, the blood vessels are usually drawn faint so the lymphatic system reads first. Arrows, if any, point toward the base of the neck. Left and right always refer to the person in the diagram, never the page.
