What is a leaf cross section diagram?

A leaf cross section diagram shows what a leaf looks like inside when it is cut across and viewed edge-on, the way a thin slice of leaf appears under a microscope. Instead of the outline and veins you see from above, it shows the leaf as a sandwich of layers, each made of a different kind of cell doing a different job: a waterproof skin on both faces, a layer of tall cells built to catch light, a looser layer full of air spaces built for gas exchange, and veins that bring water in and carry sugar out.

That is why a diagram of a leaf cross section is one of the standard figures in plant biology. It connects structure to function in a single picture: you can see why photosynthesis happens mostly near the top surface, how carbon dioxide gets from the air to the cells that need it, where water is lost, and how the leaf is plumbed into the rest of the plant. A good leaf cross section labeled diagram makes those connections visible by getting the order of the layers, the position of the stomata, and the layout of the vein exactly right.

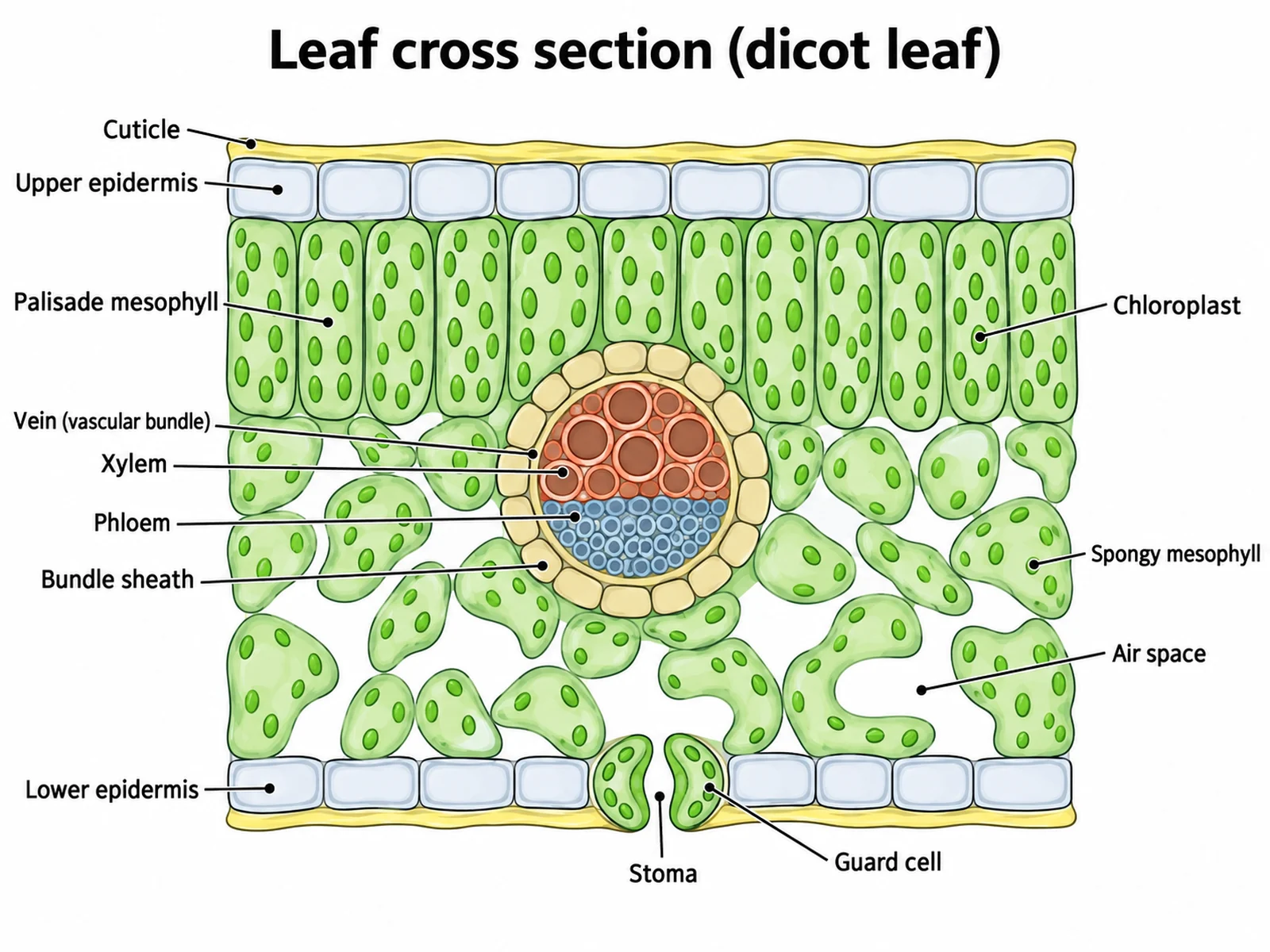

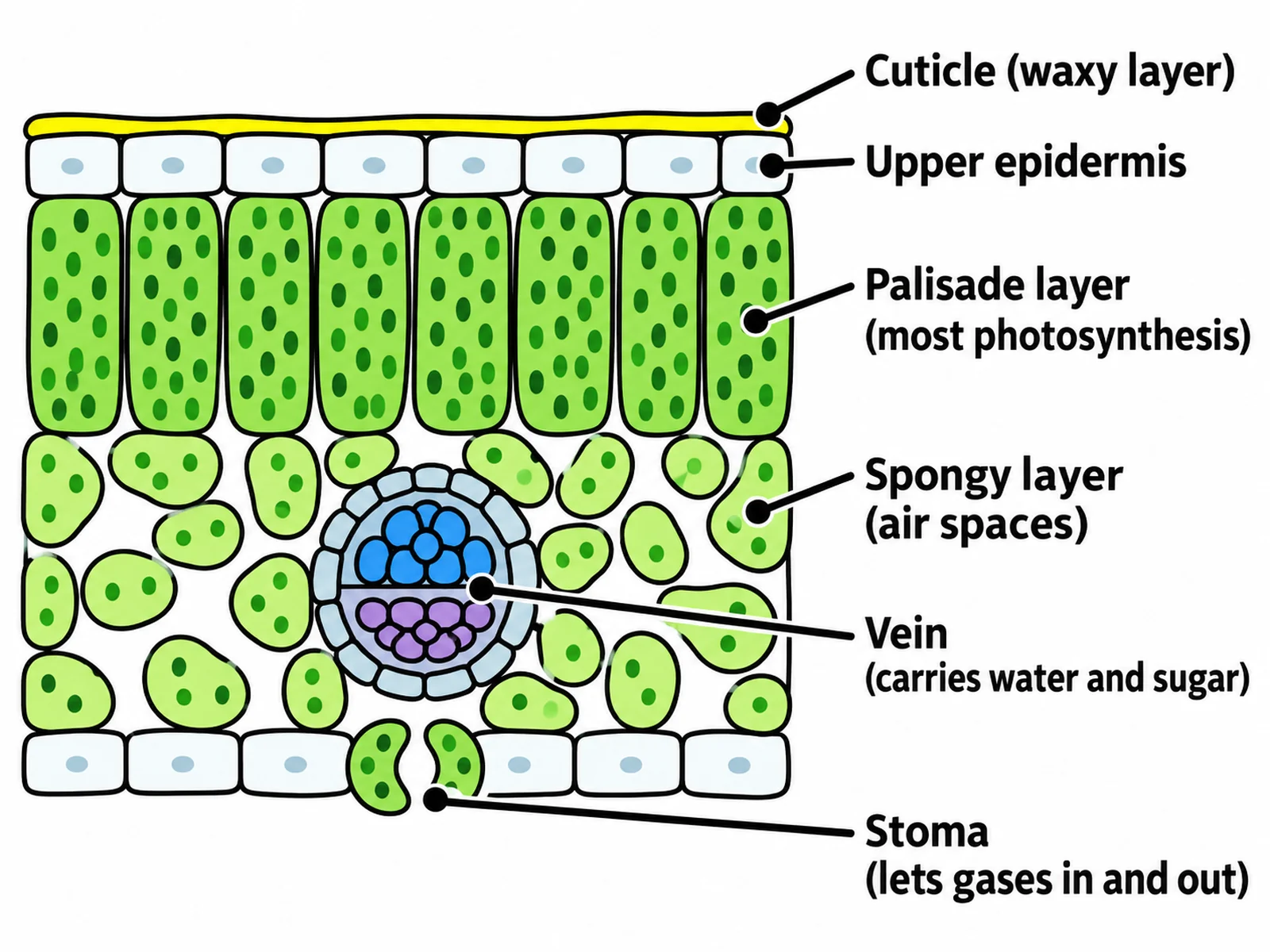

Leaf cross section labeled diagram: the parts to label

• Cuticle: the waxy, non-cellular film on the outer surface, thicker on top.
• Upper epidermis: one row of flat, tightly fitting, clear cells.
• Palisade mesophyll: one or two rows of tall, column-shaped cells packed with chloroplasts.
• Chloroplasts: most visible in the palisade cells, fewer in the spongy cells, and present in the guard cells.
• Spongy mesophyll: irregular, loosely arranged cells with fewer chloroplasts.
• Air spaces: the connected gaps between the spongy cells, largest just behind each stoma.
• Vein (vascular bundle): in the mesophyll, usually where the palisade and spongy layers meet.
• Xylem: on the upper side of the vein, carrying water and minerals into the leaf.
• Phloem: on the lower side of the vein, carrying sugars out of the leaf.
• Bundle sheath: the ring of cells wrapped around the vein.
• Lower epidermis: the bottom row of clear cells, where most stomata are.
• Stoma and guard cells: a pore between two bean-shaped guard cells that contain chloroplasts.

The layers of a leaf from top to bottom

The top of the leaf is covered by the cuticle, a waxy layer secreted by the epidermal cells. It is not alive and not made of cells; it is a film that cuts water loss through the leaf surface, and it is usually thicker on the upper side, which faces the sun. Under it is the upper epidermis, normally a single row of flat, tightly joined cells. They contain no chloroplasts and are clear, so light passes straight through them into the leaf, and they protect the tissue below.

Next comes the palisade mesophyll, the photosynthetic powerhouse of the leaf. Its cells are long and column-shaped, standing on end in one or two tightly packed rows, and they are crowded with chloroplasts. Below them is the spongy mesophyll, made of rounded, irregular cells arranged loosely so that large air spaces open between them. Spongy cells also photosynthesise, but they have fewer chloroplasts, and their main job is to provide a moist surface and open pathways for gases.

The bottom of the leaf is closed by the lower epidermis, another row of clear cells broken by stomata, each flanked by two guard cells, and covered by a thinner cuticle. Running through the mesophyll are the veins. In a section through the middle of a dicot leaf the largest vein is the midrib, which often makes the leaf thicker there and may carry supporting tissue above and below it.

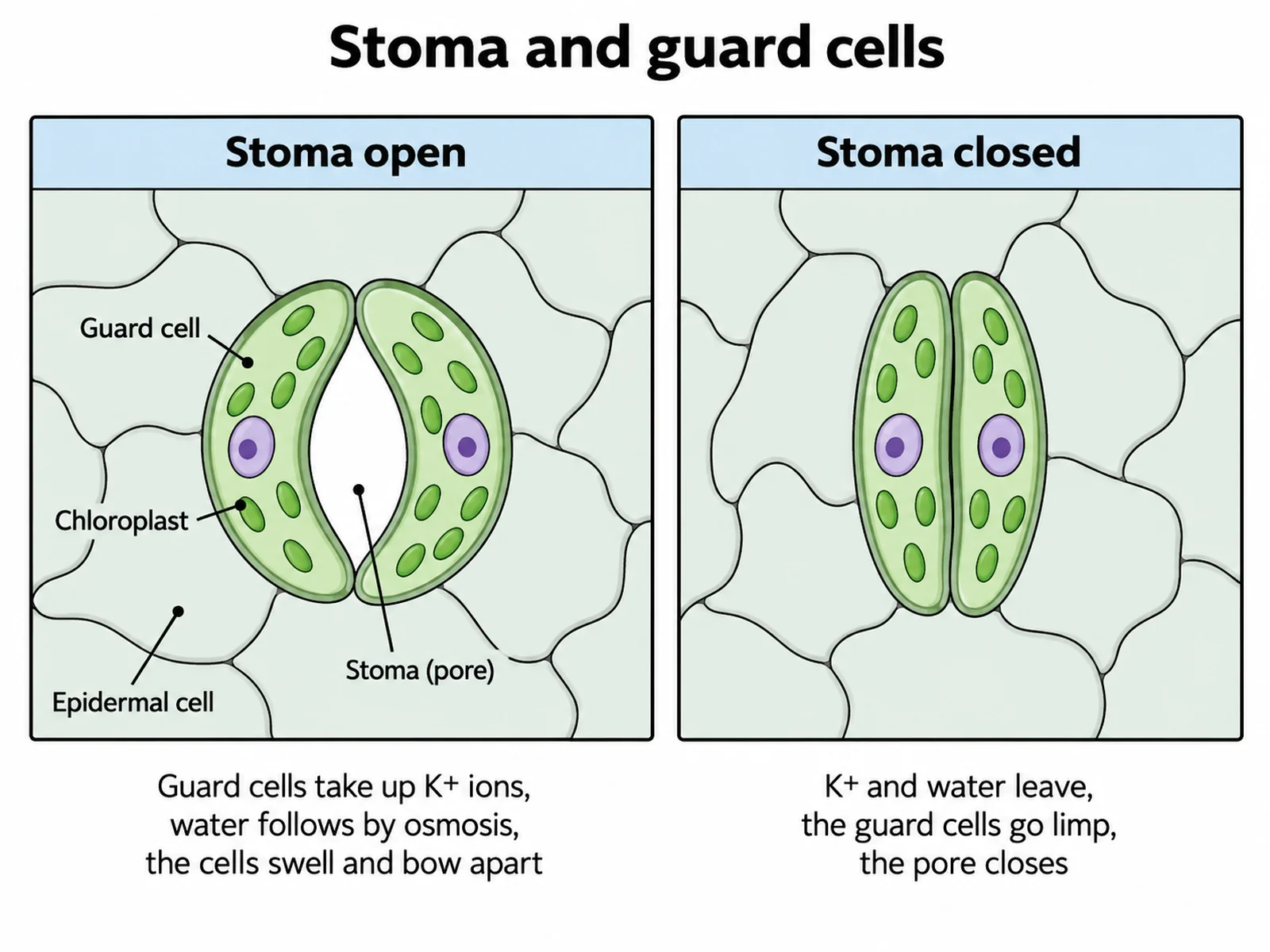

Stomata and guard cells

Stomata are the leaf’s adjustable pores. Each one is a gap between two guard cells, and it opens into an air space in the spongy mesophyll just behind it, sometimes called the substomatal cavity. When the stomata are open, carbon dioxide can diffuse in for photosynthesis — but water vapour diffuses out at the same time, so every open stoma is a trade-off between gaining carbon and losing water.

Guard cells control that trade-off by changing shape. When they take up potassium ions, water follows by osmosis, the cells swell, and because their inner walls are thicker and less stretchy than their outer walls, they bow apart and open the pore. When potassium and water leave, the guard cells go limp and the pore closes. They usually open in light and close in the dark or when the plant is short of water. Guard cells are the only epidermal cells with chloroplasts, and in most dicot leaves the stomata are concentrated on the underside, where the leaf is shaded and cooler and loses less water.

The vein: xylem, phloem, and the bundle sheath

Every vein in a leaf is a vascular bundle containing both xylem and phloem, wrapped in a bundle sheath. In a leaf section the xylem is on the upper side of the bundle and the phloem on the lower side; OpenStax describes the larger xylem cells at the top of the bundle and the smaller phloem cells at the bottom. The arrangement is inherited from the stem, where xylem lies on the inner side of each bundle: when a bundle bends out into a leaf, its inner side ends up facing the upper surface. Xylem cells are dead at maturity, with thick, strengthened walls, and they bring water and dissolved minerals into the leaf, pulled up by transpiration. Phloem is living tissue that carries the sugars made in the leaf, mainly sucrose, to the parts of the plant that need them, such as roots, fruits, and growing tips. The bundle sheath cells around the vein regulate what passes between the vein and the mesophyll; in C4 plants they become the site of the Calvin cycle.

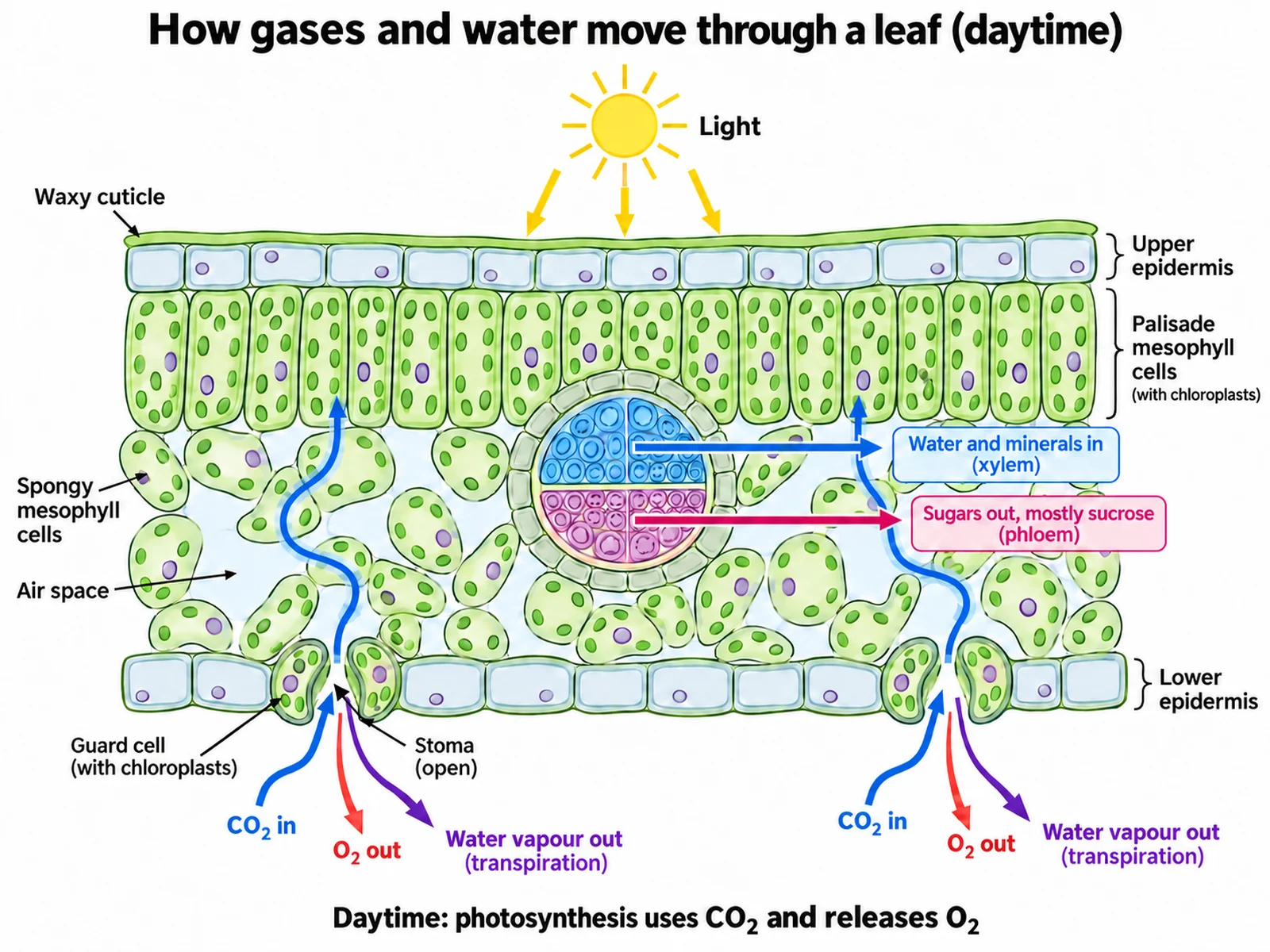

How a leaf works: gas exchange and transport in a cross section of leaf diagram

Follow the raw materials of photosynthesis through a cross section of leaf diagram and every structure makes sense. Light enters through the clear cuticle and upper epidermis and is absorbed mostly by the chloroplasts of the palisade cells. Water arrives from the roots in the xylem of the veins and spreads out into the mesophyll cells. Carbon dioxide diffuses from the air into the leaf through the open stomata, spreads through the air spaces of the spongy layer, and dissolves in the film of water on the mesophyll cells before entering them.

The products leave by the same routes in reverse. Oxygen from photosynthesis diffuses out of the cells, through the air spaces, and out of the stomata, along with water vapour evaporating from the moist mesophyll surfaces — the transpiration that pulls more water up the xylem. Sugars are loaded into the phloem and carried out of the leaf. In a diagram with arrows, daytime gas arrows point CO₂ in and O₂ and water vapour out; at night, when only respiration continues and most stomata close, the small net exchange runs the other way.

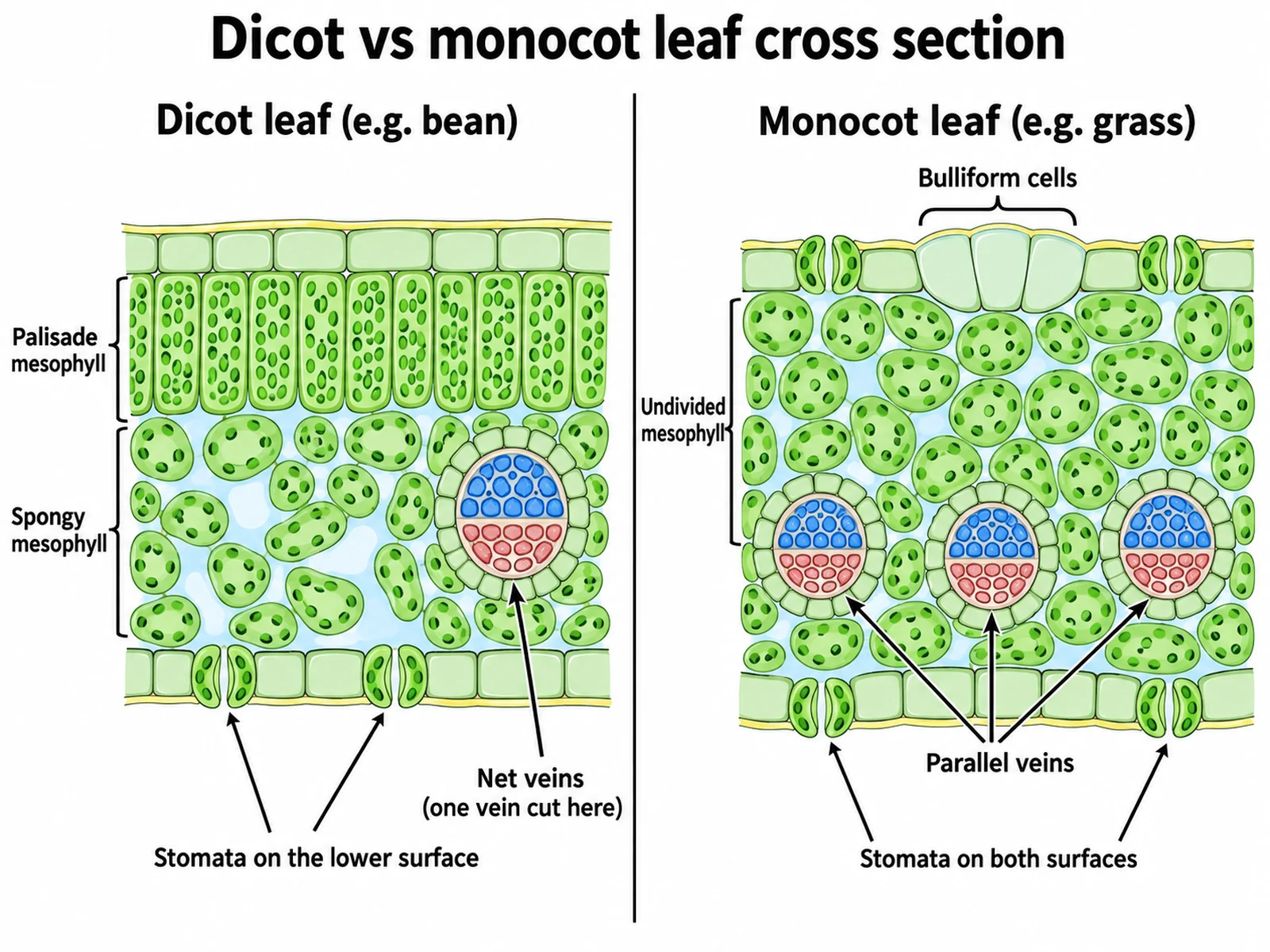

Dicot vs monocot leaf cross section

Most textbook leaf cross sections show a dicot leaf, such as a bean, sunflower, or privet leaf, with its palisade layer above its spongy layer. The leaf is dorsiventral: its top and bottom surfaces are different, because it is held flat and lit from above. A monocot leaf, such as the blade of a grass, is usually held more upright and lit from both sides, so it is isobilateral. Its mesophyll is not divided into palisade and spongy layers, its stomata are on both surfaces, and its parallel veins appear in a section as a row of similar bundles running side by side. Grasses also have groups of large, thin-walled bulliform cells in the upper epidermis, which lose water in dry weather and let the leaf roll or fold to cut water loss. When a worksheet asks you to compare a dicot and a monocot leaf, those four differences — mesophyll, stomata, veins, and bulliform cells — are what the marker is looking for.

C4 Kranz anatomy and leaves adapted to dry or wet places

Many grasses from hot climates, including maize, sugarcane, and sorghum, are C4 plants, and their leaf cross section looks different again. Each vein is surrounded by a ring of large bundle sheath cells packed with chloroplasts, and the mesophyll cells are arranged around that ring like the spokes of a wheel. This is Kranz anatomy, from the German word for wreath. The mesophyll cells capture carbon dioxide into a four-carbon acid, which moves into the bundle sheath cells and releases CO₂ there at high concentration for RuBisCO and the Calvin cycle, which cuts photorespiration in hot, bright conditions. The veins of a C4 leaf are also packed closer together.

Habitat changes leaf anatomy too. Leaves of xerophytes, plants of dry places, cut water loss with a thick cuticle, stomata sunken in pits or grooves and often fringed with hairs that trap still, humid air, and in some species a leaf that rolls up with the stomata on the inside; OpenStax gives the needle-like leaves of conifers, with sunken stomata and a small surface area, as an example. Floating leaves of aquatic plants do the opposite: their stomata are on the upper surface, since the lower surface is under water, and their mesophyll has large air spaces that keep the leaf afloat.

How to draw a leaf cross section

To draw a cross section leaf diagram by hand, start with a long horizontal rectangle and divide it into bands before drawing any cells. Draw a thin line along the top for the cuticle and a row of flat brick-like boxes below it for the upper epidermis. Under that, draw one or two rows of tall upright rectangles touching each other, and fill them with small green dots for chloroplasts — the palisade layer. Below the palisade, draw rounded, irregular cells with plenty of white space between them for the spongy layer, and place a circle in it, touching the bottom of the palisade, for the vein: draw larger cells in its upper half for xylem and smaller ones in its lower half for phloem, with a ring of cells around the whole. Finish with a row of flat boxes for the lower epidermis, leave one gap in it, and draw two bean-shaped guard cells with green dots on either side of the gap, with a large air space just above it. Add a thin cuticle line along the bottom.

A diagram of leaf cross section under the microscope

A prepared slide of a leaf cross section, often a privet or similar dicot leaf, shows the same layers as a diagram but is harder to read at first. Under low power the leaf appears as a long, thin band, thicker at the midrib. The palisade layer stands out as a dense, dark green row near one surface — that surface is the top of the leaf — while the spongy layer looks pale and patchy because of its air spaces. The epidermis is a single clear line of cells on each face, and the stomata appear as small breaks in the lower epidermis flanked by two darker guard cells. The veins are cut at various angles, so some appear round and others elongated. Labeling a micrograph and then generating a clean labeled diagram of the same leaf is a good way to connect what students see with what they learn.

Cross section of a leaf with labels: worksheet tips

A labeling worksheet is only fair if every leader line has exactly one answer. Point each line at the middle of the thing it names — the centre of the palisade row, not the boundary between two layers — and give layers and individual cells separate lines: one to the palisade mesophyll, another to a single chloroplast inside it. Number the lines from the top surface down so the answer key reads in the same order as the leaf. For the vein, use three lines — the whole vein, its upper half for xylem, and its lower half for phloem — so students have to know the arrangement, not just the word. If you add a word bank, list exactly as many terms as there are lines. Generating the labeled diagram first and then using the blank edit on that image keeps the worksheet and the answer key identical, line for line.

Leaf cross section images: what to check before you use one

• Layer order: cuticle, upper epidermis, palisade, spongy, lower epidermis, cuticle.
• Chloroplasts: packed in the palisade, fewer in the spongy layer, present in guard cells, absent from other epidermal cells.
• Stomata: in the lower epidermis of a dicot leaf, each between two guard cells.
• Vein: in the mesophyll, xylem on top and phloem below, with a bundle sheath around it.
• Cuticle: a smooth film, never a row of cells.
• Arrows: in daylight CO₂ in, O₂ and water vapour out.
