Skeletal System Diagram: Labeled & Blank

What is a skeletal system diagram?

A skeletal system diagram is a labeled drawing of the human skeleton that names its bones. The standard version shows a whole adult skeleton from the front in anatomical position: standing, facing you, arms at the sides with the palms forward. It is one of the first figures anyone meets in biology or anatomy, because it ties the names of the bones to where they are in the body.

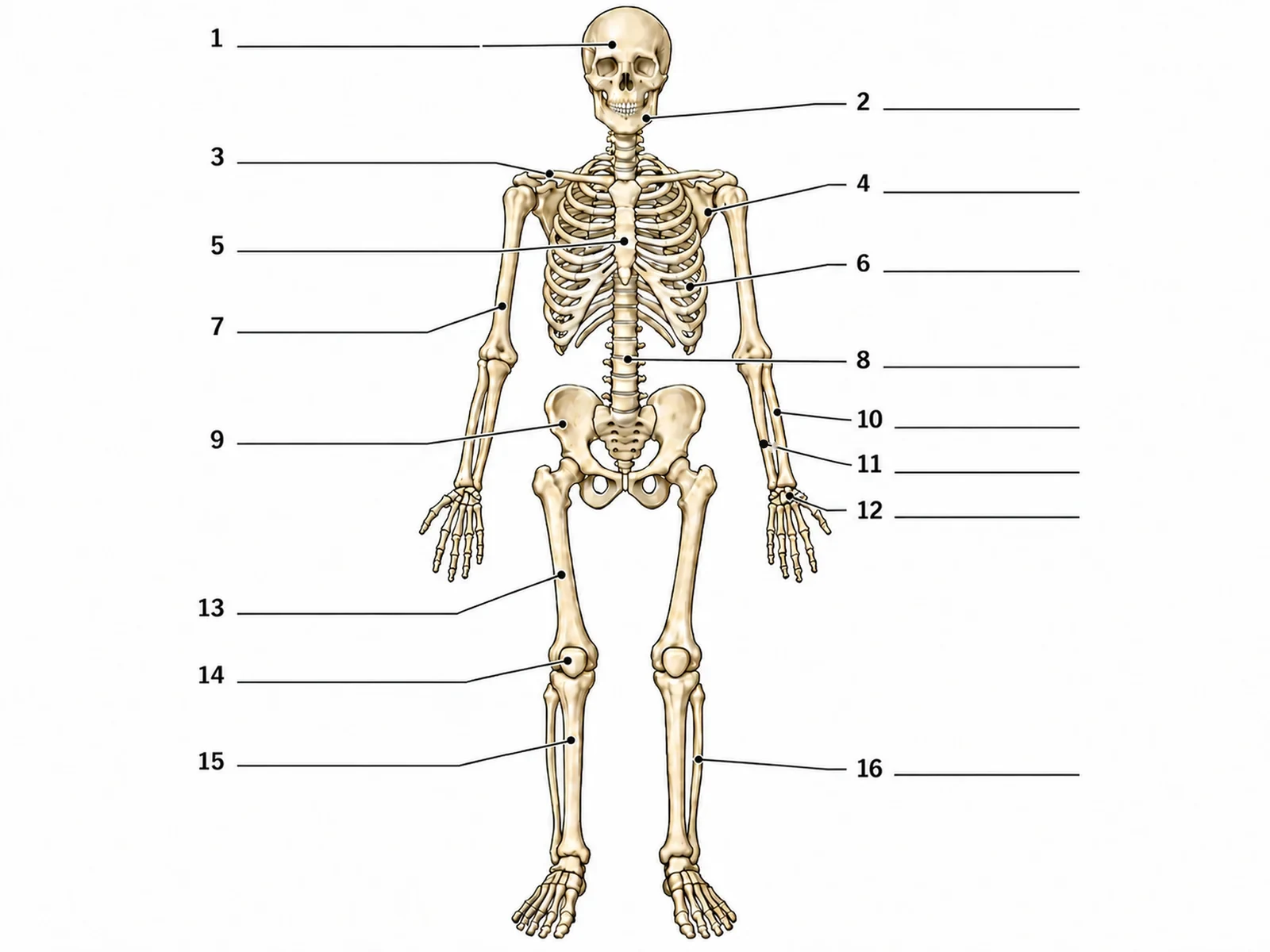

In class the figure appears in two forms. A labeled skeletal system diagram names every bone and works as a reference or an answer key. A blank skeleton diagram keeps the drawing and the leader lines but leaves the names off, so students write them in. This page makes both from one description, plus a numbered version with a key and a worksheet with a word bank.

The 206 bones: how the count breaks down

Textbooks give the adult total as 206, split into the axial skeleton (80 bones) and the appendicular skeleton (126). A whole-body diagram never labels all 206, because the small bones of the skull, wrist, and ankle would be unreadable at that scale. What it should get right is the structure behind the count.

• Skull: 22 bones. Eight cranial bones (frontal, two parietal, two temporal, occipital, sphenoid, ethmoid) and 14 facial bones, including the mandible.
• Ear ossicles and hyoid: three tiny bones in each middle ear (malleus, incus, stapes) and the U-shaped hyoid in the neck, 7 in all. They are rarely drawn on a whole skeleton.
• Vertebral column: 26 bones. That is 7 cervical, 12 thoracic and 5 lumbar vertebrae, plus the sacrum and the coccyx.
• Thoracic cage: 24 ribs in 12 pairs, plus the sternum.
• Upper limbs and pectoral girdle: 64 bones. Each side has a clavicle, a scapula, a humerus, a radius, an ulna, 8 carpals, 5 metacarpals and 14 phalanges.
• Lower limbs and pelvic girdle: 62 bones. Each side has a hip bone, a femur, a patella, a tibia, a fibula, 7 tarsals, 5 metatarsals and 14 phalanges.

The axial skeleton: 80 bones along the midline

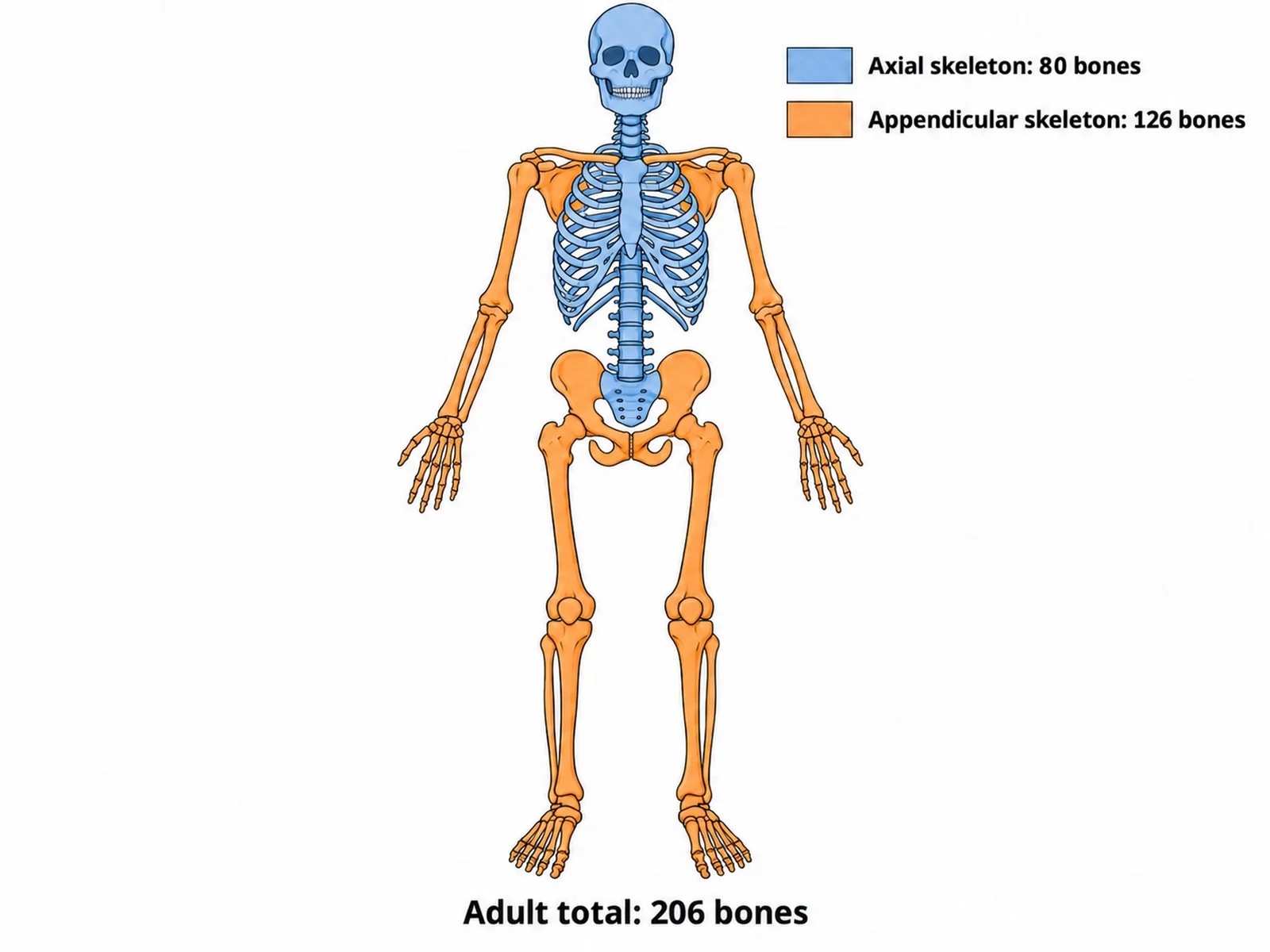

The axial skeleton is the central column of the body. It protects the brain, spinal cord, heart and lungs, and it is the frame the limbs hang from. On a color-coded diagram it is the part left once the arms, legs and girdles are taken away.

• Skull: the cranium encloses the brain; the facial bones shape the face and hold the teeth. The mandible is the only skull bone that moves.
• Vertebral column: seen from the side it has four curves, cervical and lumbar curving forward, thoracic and sacral curving back. That S-shape is why a lateral view looks different from a front view.
• Ribs: all 12 pairs join a thoracic vertebra at the back. Ribs 1 to 7 reach the sternum by their own costal cartilage, ribs 8 to 10 reach it through the cartilage above, and ribs 11 and 12 have free front ends.
• Sternum: the manubrium at the top, where the clavicles attach, then the body, then the small xiphoid process at the bottom.
• Sacrum and coccyx: five vertebrae fused into the sacrum, and usually four tiny ones into the coccyx. Both are axial even though they sit inside the pelvis.

The appendicular skeleton: 126 bones in the limbs and girdles

The appendicular skeleton is built for movement. Each limb hangs from a girdle that connects it to the axial skeleton. The two limbs follow the same plan: one bone in the upper segment, two in the lower segment, then a wrist or ankle, then five digits.

• Pectoral girdle: the clavicle and the scapula on each side. The clavicle is the only bony link between the arm and the trunk, which is one reason it breaks so often in falls on an outstretched hand.
• Arm and hand: humerus in the upper arm; radius (thumb side) and ulna (little-finger side) in the forearm; 8 carpals in the wrist; 5 metacarpals in the palm; 14 phalanges in the fingers.
• Pelvic girdle: two hip bones, each made of the ilium, ischium and pubis fused together. They meet at the pubic symphysis in front and join the sacrum at the back.
• Leg and foot: femur in the thigh, the patella in front of the knee, the tibia (inner, weight-bearing) and fibula (outer) in the leg, 7 tarsals including the calcaneus (heel) and talus, 5 metatarsals and 14 phalanges.

Bones to label on a blank skeleton diagram, by level

The right number of labels depends on the class. Too few and the worksheet is trivial; too many and the small bones crowd each other. These are the sets the level menu uses when your description does not list its own bones.

• Middle school: about ten bones with everyday names, such as skull, jaw, collarbone, ribs, breastbone, backbone, pelvis, thigh bone (femur), kneecap and shin bone.
• High school: the twenty standard bones, from the skull, mandible, clavicle, scapula and sternum down to the tarsals and metatarsals.
• College: the major bones plus the regions of the vertebral column, the three parts of the sternum, the parts of the hip bone, and the calcaneus and talus.
• Medical: bony landmarks as well as bones, such as the acromion, olecranon, iliac crest, greater trochanter, tibial tuberosity and the malleoli.
• Any level: a clean unlabeled skeleton with no lines at all, for coloring, quizzing aloud, or as a slide background.

Reading a front-view skeleton: sides, pairs, and anatomical position

Most labeling mistakes on skeletons come from the view, not the bone names. In a front view the person faces you, so their right arm is on your left. Labels such as right humerus or left femur always mean the person’s side. A back view flips this: the person’s right is on your right.

Anatomical position also decides how the forearm looks. With the palms forward the radius and ulna lie parallel, the radius on the outside on the thumb side. A skeleton drawn with its palms against the thighs has the radius crossing the ulna. That is not wrong anatomy, but it confuses students labeling the two bones, so this generator keeps the palms forward unless you ask otherwise. The same habit applies to the leg: the tibia is always on the inner, big-toe side, whichever way the figure faces.

Skull, hand, and foot close-ups

Some of the most tested bones are too small for a whole-body figure, so they get their own close-up.

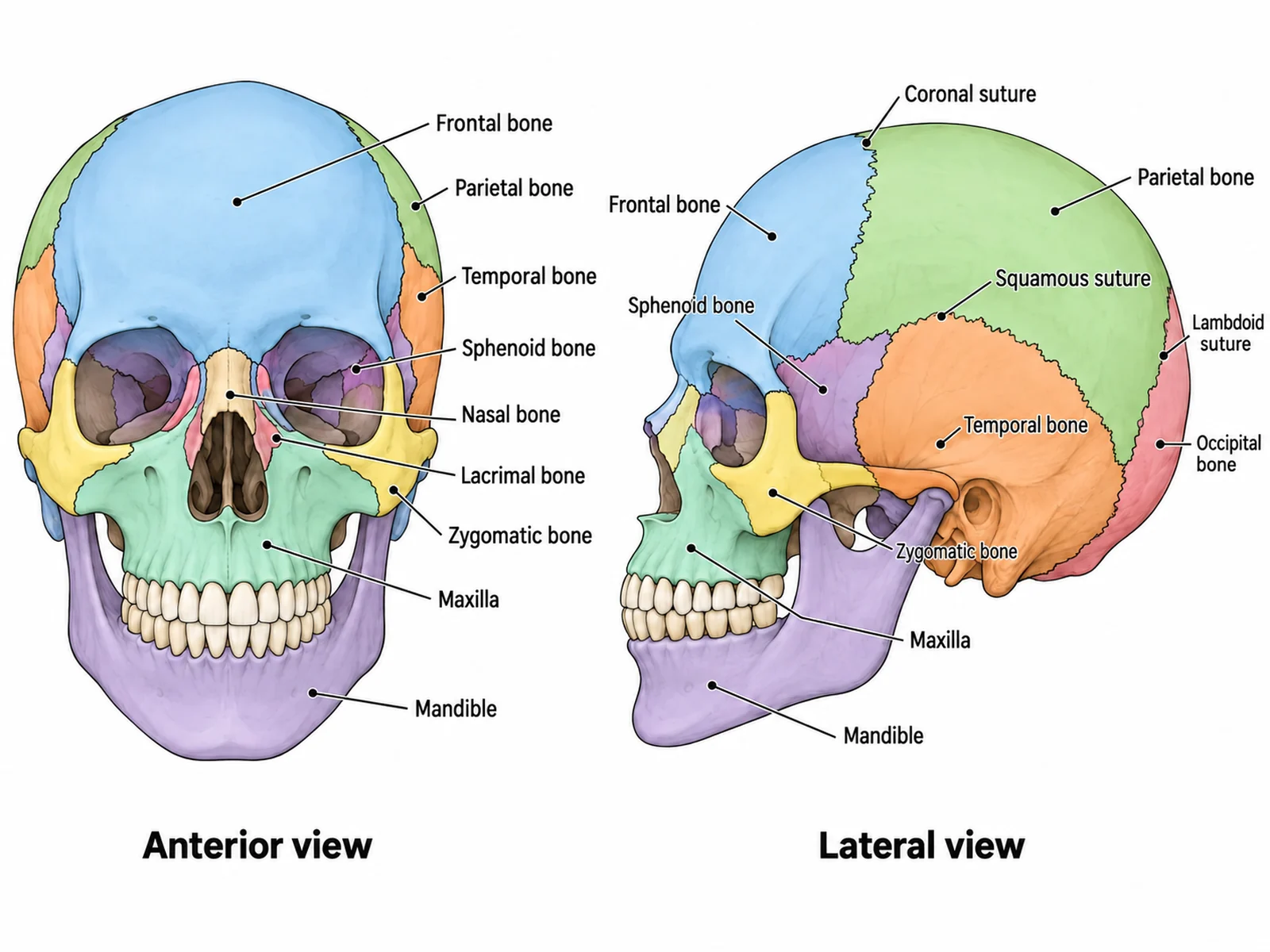

• Skull, front view: frontal, parietal, temporal, sphenoid, ethmoid and lacrimal around the orbit, nasal, zygomatic (cheekbone), maxilla (upper jaw) and mandible (lower jaw). The occipital bone is at the back and cannot be seen from the front.
• Skull, side view: adds the occipital bone and shows the sutures. The coronal suture runs between the frontal and parietal bones, the squamous suture above the temporal bone, and the lambdoid suture in front of the occipital bone.

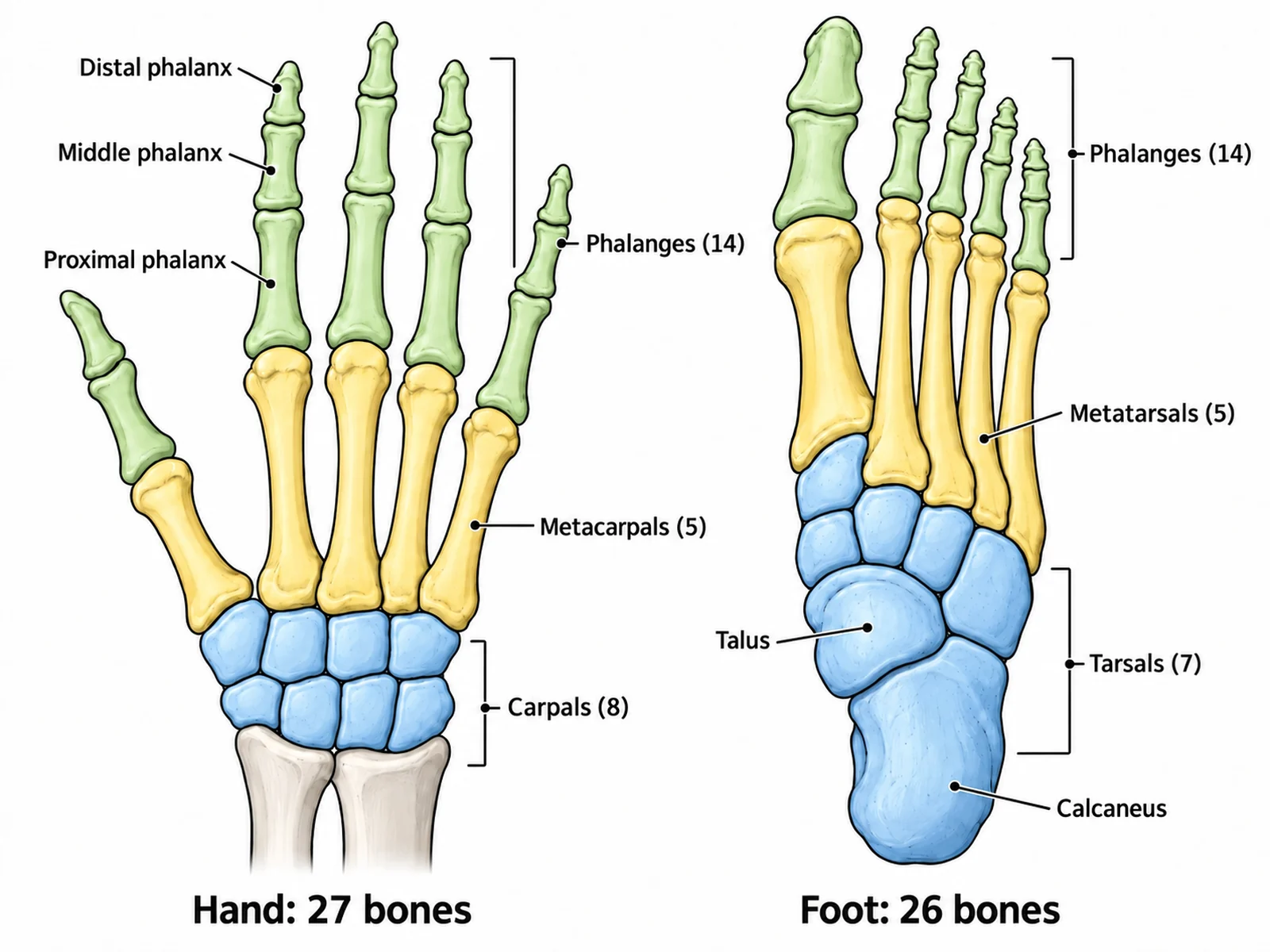

• Hand: the carpals sit in two rows of four. Students often learn them as scaphoid, lunate, triquetrum and pisiform in the near row, and trapezium, trapezoid, capitate and hamate in the far row. Then come 5 metacarpals and 14 phalanges.
• Foot: the talus forms the ankle joint with the tibia and fibula, and the calcaneus forms the heel below it. The navicular, cuboid and three cuneiforms complete the 7 tarsals, followed by 5 metatarsals and 14 phalanges.

Bone shapes and the parts of a long bone

Anatomy courses often pair the whole skeleton with a cut-open long bone, and both ask students to sort bones by shape. Ask for "a labeled long bone section" and the generator draws a femur or humerus opened lengthwise.

• Long bones are longer than they are wide: the femur, humerus, radius, ulna, tibia, fibula, the metacarpals and metatarsals, and even the small phalanges.
• Short bones are roughly cube-shaped, like the carpals and tarsals. Flat bones are thin and often curved: the skull roof, sternum, ribs and scapula. Irregular bones, such as the vertebrae, fit none of these shapes.
• Sesamoid bones grow inside a tendon. The patella is the largest; smaller ones sit in the hands and feet.
• Diaphysis: the shaft, a tube of compact bone around the medullary cavity, which holds yellow marrow in adults.
• Epiphyses: the two ends, made of spongy bone with red marrow in its spaces and capped with articular cartilage where they form a joint.
• Epiphyseal plate: the band of cartilage between shaft and end where a child’s bone grows in length. In an adult it is only a thin epiphyseal line.
• Periosteum and endosteum: the periosteum is the tough membrane over the outside of the bone, except on the joint surfaces; the endosteum lines the medullary cavity.

Joints a skeleton diagram can show

A skeleton is also a map of the joints between its bones, and joint labels are a common extension once the bones are known. The structural classes are fibrous, cartilaginous and synovial.

• Fibrous joints barely move. The sutures between the skull bones are the standard example.
• Cartilaginous joints allow a little movement: the pubic symphysis at the front of the pelvis, and the intervertebral discs between vertebral bodies.
• Ball-and-socket synovial joints, at the shoulder and the hip, move in every direction. The hip socket is deeper, which makes it more stable and less mobile than the shoulder.
• Hinge joints, at the elbow and the knee, bend in one plane. The pivot joint between the first two cervical vertebrae lets the head turn side to side.
• Saddle and condyloid joints, at the base of the thumb and at the wrist, give two directions of movement.

Male and female skeletons

Men and women have the same 206 bones and the same 12 pairs of ribs. The idea that men have one rib fewer is a myth. The clearest difference is the pelvis. A female pelvis is wider and shallower, with a rounder inlet and a wider angle under the pubic arch, which leaves room for childbirth. A male pelvis is narrower and taller, with a heart-shaped inlet and a sharper pubic angle. Male bones are also on average heavier, with more pronounced ridges where muscles attach. On a standard diagram none of this matters, but if a worksheet compares the two pelves, say so in your description so the difference is drawn on purpose.

What the skeletal system does

• Support: the skeleton holds the body’s shape and carries its weight down through the spine, pelvis and legs.
• Protection: the skull surrounds the brain, the vertebrae the spinal cord, and the rib cage the heart and lungs.
• Movement: bones are levers, joints are pivots, and skeletal muscles attached by tendons pull on them.
• Mineral storage: bone holds most of the body’s calcium and phosphate and releases them into the blood when needed.
• Blood cell formation: red bone marrow, mainly in the flat bones, the vertebrae and the ends of long bones in adults, makes red cells, white cells and platelets.
• Fat storage: yellow marrow in the shafts of adult long bones stores fat.

Using an unlabeled skeleton diagram in class

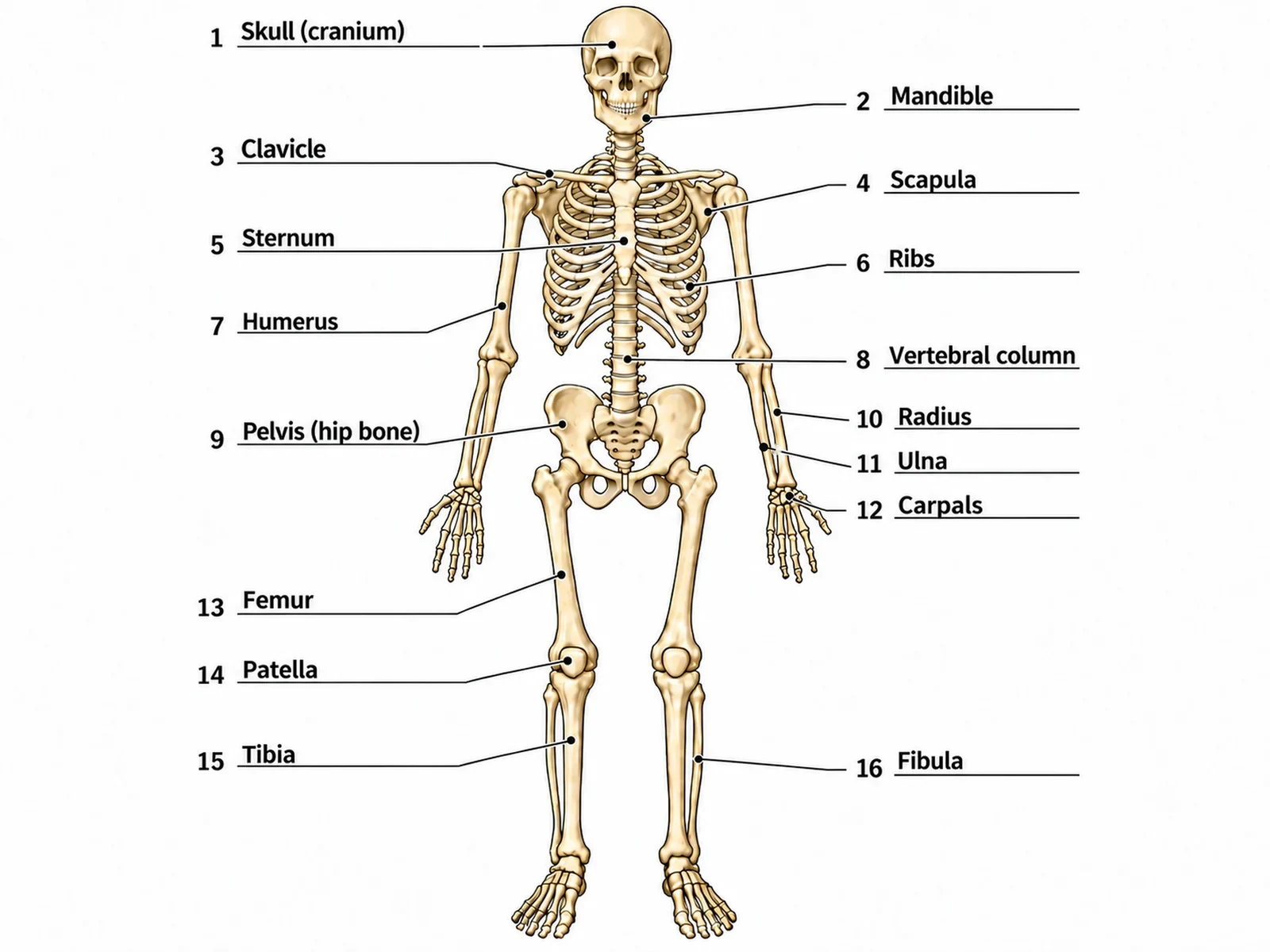

• Start blank, end labeled: hand out the blank skeleton worksheet, then show the answer key made from the same result so every number matches.
• Match the labels to the lesson: ten bones for a starter, twenty for an end-of-unit check, landmarks for an anatomy practical.
• Word bank or not: include one for a scaffolded lesson, leave it out for a test. The word bank is alphabetical, so its order gives nothing away.
• One skeleton, two divisions: use the axial and appendicular version to sort bones before naming them.
• Close-ups for detail: test the carpals, tarsals and skull bones on their own sheets instead of squeezing them onto the whole body.

How the skeleton changes from birth to adulthood
